waltyotur Hydraulic Directional Control Valve 5 Spool 11 GPM, SAE Ports, 3625 PSI for Small Tractors Tractors Loaders Log Splitters
waltyotur Hydraulic Directional Control Valve 5 Spool 11 GPM, SAE Ports, 3625 PSI for Small Tractors Tractors Loaders Log Splitters
Description

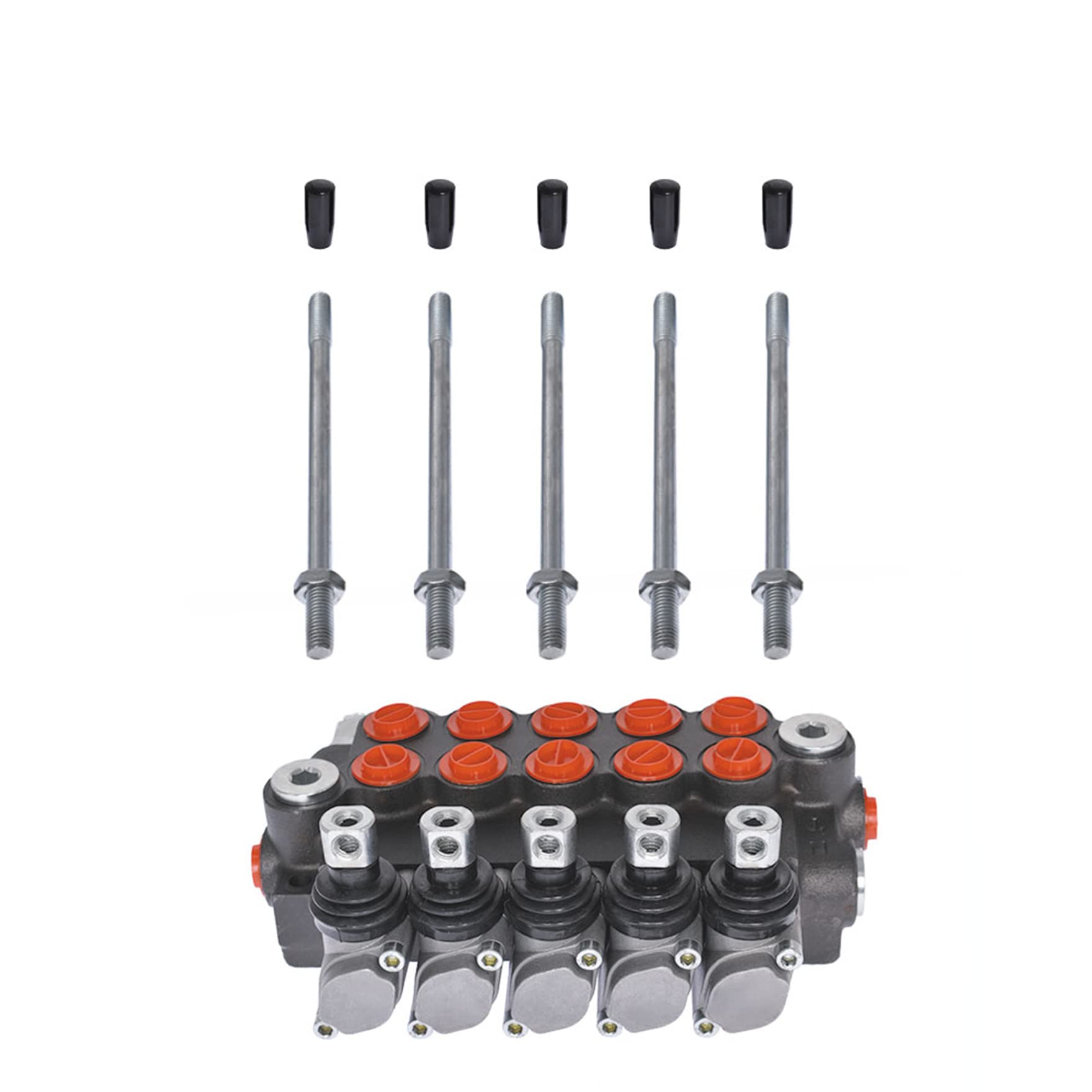

5 Spool 11gpm Hydraulic Directional Control Valve Specification: Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI Flow Rating: 11 GPM (40 l/min) A & B Work Ports: 8 SAE O-Ring (3/4"-16) Thread Inlet Port: 10 SAE O-Ring (7/8"-14) Thread Outlet Port: 10 SAE O-Ring (7/8"-14) Thread 2 - 5/16" Mounting Holes Features: 5 Spool valve with compact design allows for installations in tight areas All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders Used for open center systems (Pump to Tank Flow) Anti-drop load checks on each spool Precision ground and hard chrome-plated spools assure a long life High-tensile strength cast iron monoblock construction SAE O-Ring ports ensure solid seal and prevent blockages Capable of Closed Center or Power Beyond (conversion plug required) Vertical or horizontal handle mount Adjustable Relief Valve Range: 1500 to 3625 PSI Used as motor or single-acting spool possible Package Included: 1 x 5 Spool Hydraulic Directional Control Valve
Item Details
Pickup Location
2832 Anode Lane
Dallas, TX, 75220
Quality
Estimated Retail Price
$76.08
Buyers Premium
15%
Inventory Number
1045771755
Found in
Additional Details from the Manufacturer
This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing
brand
waltyoturweight
20.07 lbsMore features
- Hydraulic Spool Valve: Equipped with 5 spools and SAE type ring inlet/outlet port. Maximum pressure of this hydraulic is 3625 PSI, and maximum flow can reach 11 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.
- Double Acting Cylinders: All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders. Single float spool will raise & lower your bucket and features a locking detent position.
- Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
- Compact Structure: This hydraulic directional control valve comes with 5 spool, with cast iron construction for long-time use, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities.
- Wide Application: It is used in hydraulic systems in agriculture, horticulture, forestry, construction, and industry. The distributor is adapted to different types of machines: agricultural machines, tractors, construction machines, loaders, and for other applications hydraulically controlled.
