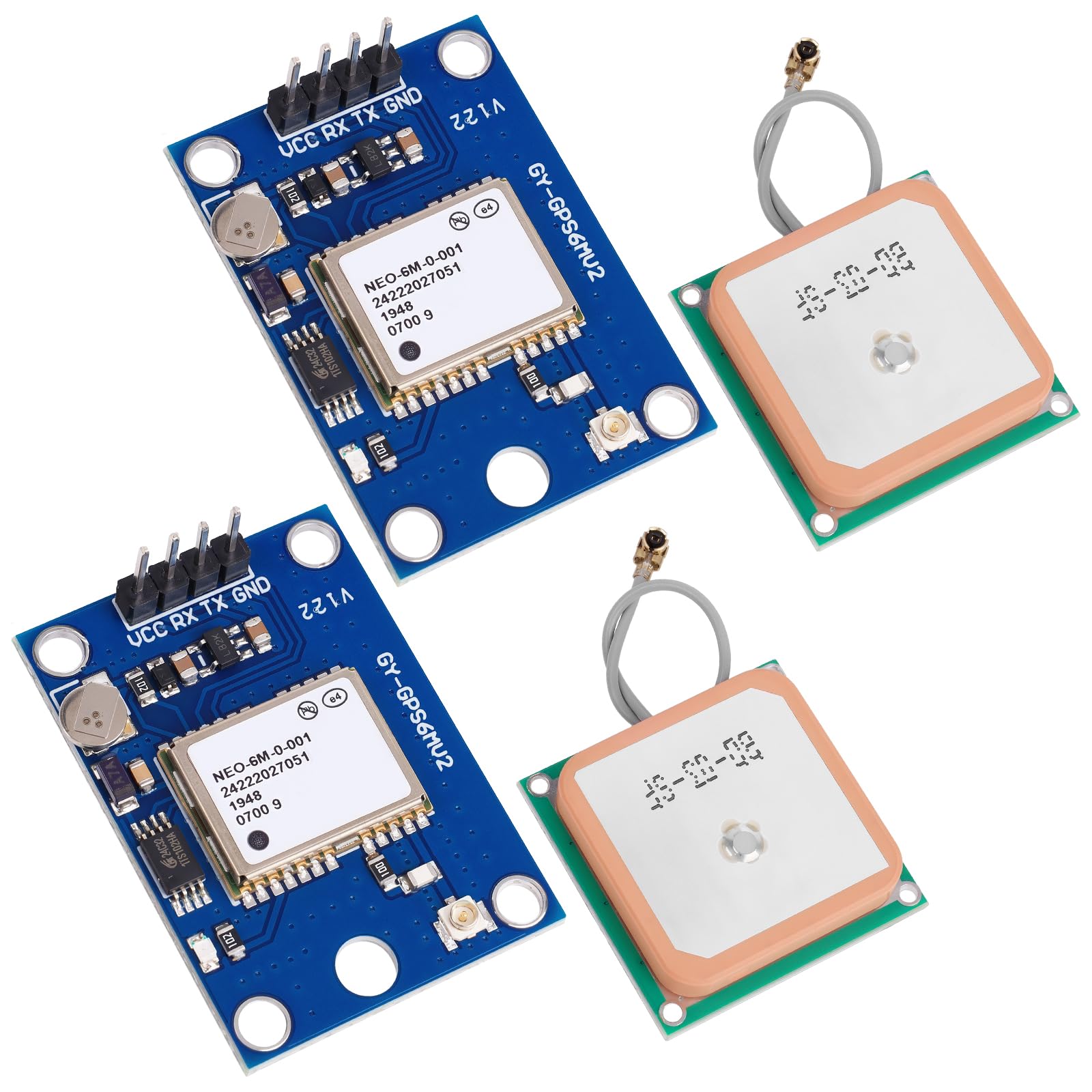

YELUFT 2pcs GY-NEO6MV2 NEO-6M GPS Module Flight Control Module Support 3.3V-5V Power Supply with Ceramic Antenna for Arduino, STM32, Raspberry Pi, ESP32

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• Accurate Positioning: Based on NEO-6MV2, supports GPS and GLONASS, supports simultaneous tracking of 22 satellites, tracking sensitivity -162dBm, cold-start sensitivity -148 dBm, positioning accuracy up to ±2.5m in open environments, stable positioning even in complex environments such as urban canyons or dense jungles
• Low Power Consumption: Supporting 3.3V-5V power supply, the continuous operating current is 67mA, 11mA in standby mode, and 1mA during sleep, which ensures the positioning accuracy while controlling the energy consumption to the maximum, especially suitable for the scenarios that are sensitive to the endurance, and significantly reduces the cost of post maintenance
• Hardware Interface: Standard UART-TTL level, support 3.3V/5V dual voltage compatibility, can be directly connected to Arduino, Raspberry Pi, ESP32 and other development boards; 4Pin interface ( VCC, GND, TX, RX), reserved hardware reset pin; baud rate support 4800bps~115200bps (default 9600bps), real-time switching through AT instructions or UBX commands, to adapt to different master performance
• Plug and Play: Onboard EEPROM chip operates independently of the main control chip, saves configuration parameters after power failure, and automatically reads the parameters (baud rate, positioning mode, NMEA statement screening) from the EEPROM when the power is on, eliminating the need to repeat the initialisation, and realising Plug and Play
• Widely Application: Widely used in vehicle monitoring, UAV navigation, handheld terminals and other scenarios that require high-precision positioning. You can also combine with Arduino, STM32, LoRa module, etc. to quickly build GPS tracker, weather station and other IoT applications
