Watts LF25AUB-Z3 Water Pressure Reducing Valve NPT Female Union x NPT Female, Polymer Seat, 3/4 Inch
Watts LF25AUB-Z3 Water Pressure Reducing Valve NPT Female Union x NPT Female, Polymer Seat, 3/4 Inch
Description
This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial, and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The standard pressure setting is 50 psi (345 kPa) with maximum working pressure at 300 psi (20.7 bar).
Notes

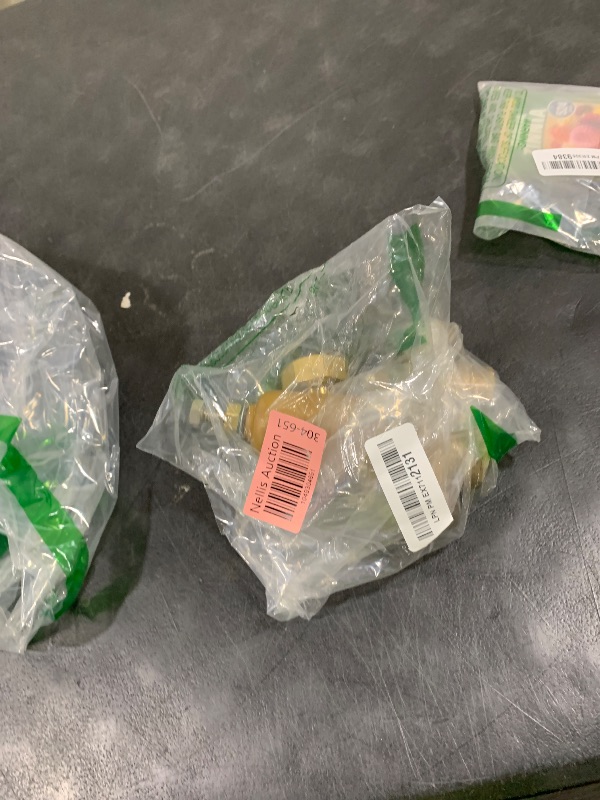

USED ////
Item Details
Pickup Location
4031 Market Center Dr Suite 303
North Las Vegas, NV, 89030
Quality
brand
WattsEstimated Retail Price
$166.92
color
Polymer Seatsize
3/4 Inchweight
3.30 lbsBuyers Premium
15%
Inventory Number
1049304651
Found in
Features
- Reduces incoming water pressure to protect plumbing systems and reduce water consumption in commercial industrial and residential applications
- Water supply pressures range is 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa)
- Lead free copper silicon alloy with stainless steel strainer and corrosion resistant adjusting and cage screws, high-temperature diaphragm, replaceable seat module
- End connection options such as PEX, CPVC, and Quick-Connect
- The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply
