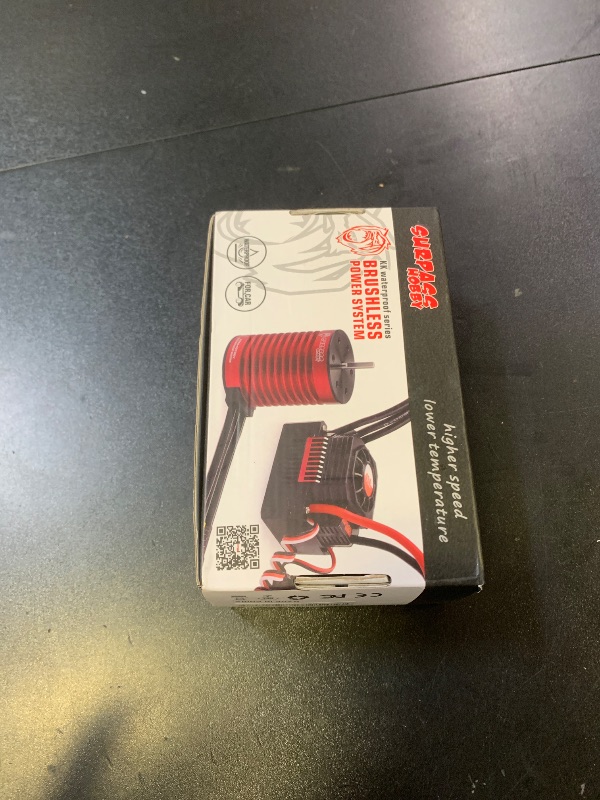

RC Car 1:10 Scale 3650 5200KV Brushless Motor & 120A ESC & Programming Card PI65 Waterproof Motor & Electronic Speed Controller Combo Set for Most of 1/10 RC Car Truck On-Road Car

Features: Water-proof Motor: ✔4Pole 12 Slot Hi-torque Motor Design ✔High Purity CopperWindings Maximizes Efficiency ✔High RPM ABEC5 Oversized Bearings ✔Precision balanced rotor, removable/replaceable rotor ✔Specially designed for 1/10 1/8 rc car, waterproof,a good choice for your rc car. Water-proof ESC: ✔Specially designed for RC car, water-proof and dust-proof for all-weather races. ✔Excellent start-up, acceleration and linearity features. ✔The strong resistant current capability, excellent heat dissipation. ✔Multiple protection features, widely compatible with for 1/10 1/8 RC car Specifications: Motor: Watts: 900W Max voltage: 9.6V Max Amps: 94A KV(RPM/Volt): 5200KV Max RPM: 50000 Plug type: 4mm golden banana plug Shaft length: 15mm Shaft diameter: 3.175mm Diameter: 36mm Length: 50mm Weight: 180g ESC: Cont/Burst Current: 120A/600A Motor Type: Sensorless brushless motor Suitable brushless motor: ≥3.5T Resistance: 0.00035ohm Battery: 2-6cells Lipo/ 4-18cells NiMH BEC Output: 6.1V/3A(switch mode) Diamension:41 X 51 X 36mm (1.61 x 2 x 1.42in) Instuctions 1. Connect BEC wires with the receiver 2. Connect motor wires with ESC 3. Turn on the transmitter 4. Connect battery pack with ESC then switch on the ESC. 5. When the connection of motor and battery is finished, the motor emits"Beep-Beep"tone. 6. When the throttle stick is in the neutral position, the motor re-emits "Beep-Beep"tone. 7. The ESC is workable. 8. Troubleshooting,please read product manual(ESC) Package Including 1 X 3650 5200KV Sensorless Brushless Motor 1 X 120A ESC 1 X Red Programming Card 2 X product manual
