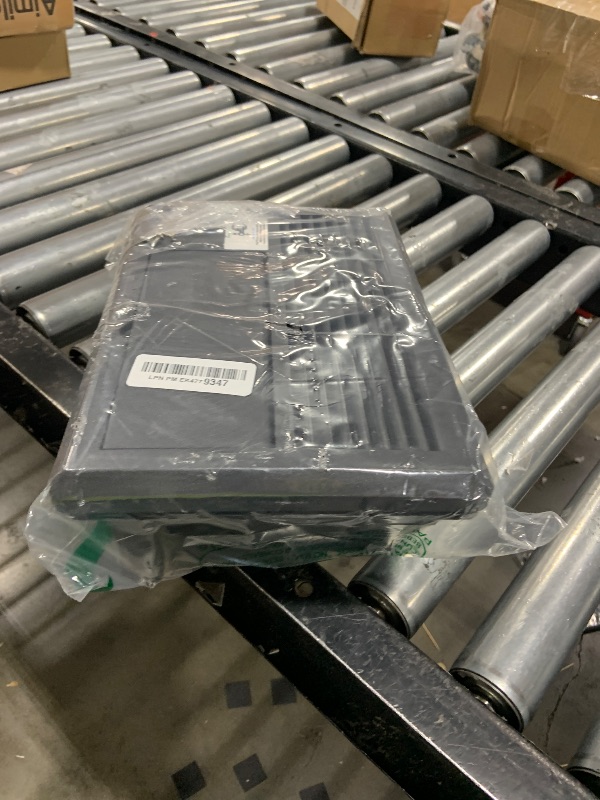

PD4135KW2BV 35 Amp RV Power Converter Panel Converter 105-130VAC to 13.6VDC 35 Amps for Inteli-Power 4100 Series, Replaces for WFCO 8735

Features

• Technical Specifications: Input 105-130VAC 50/60HZ 725 Watts. Output 13.6VDC 35 Amps DC rating 1-40A, 1-30A, 4-20A fuse holders. Replaces for part numbers PD4135KW2BV, PD4135K2, PD4135K, PD4135KW, PD4135KW2, replaces for WFCO 8735.
• Reliable Power: AC Distribution Panel is rated for 120 VAC 30 Amps with up to 5 branch circuits. DC section has 6 branch fuse holders, with a maximum rating up to 30 Amps each, for safe and efficient power distribution. Includes all wire tails for ease of installation.
• Reverse Battery Protection: Built-in safety feature protects the converter from damage if a battery is accidentally connected backward. LED indicators clearly show which fuse is blown, making troubleshooting and maintenance quick and easy. Equipment switch for using LiFePO4 Lithium Batteries, or Lead Acid.
• 4 Charge Modes: Boost Mode (14.4V) for rapid charging, Normal Mode (13.6V) for safe charge completion, Storage Mode (13.2V) for maintaining charge, and Equalization Mode (14.4V) to prevent battery stratification.
• Versatile & Advanced Power Source Solution: 4100 series converters is widely used in various recreational vehicles such as RV, trailers and campers, ideal for powering a variety of electronic devices and appliances. PD4135KW2BV converter provides 35 Amps of reliable DC power while providing a convenient, cheaper, long-term option that eliminates the hassle of replacing the entire unit.
