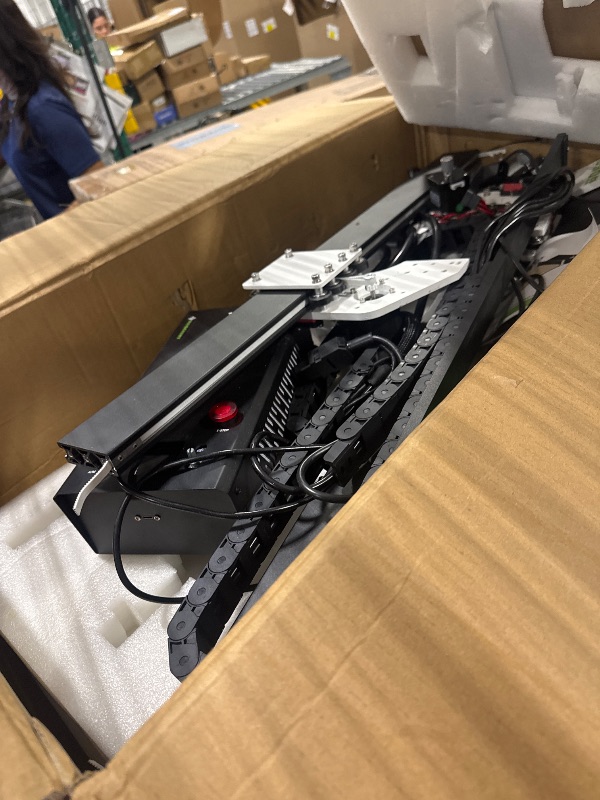

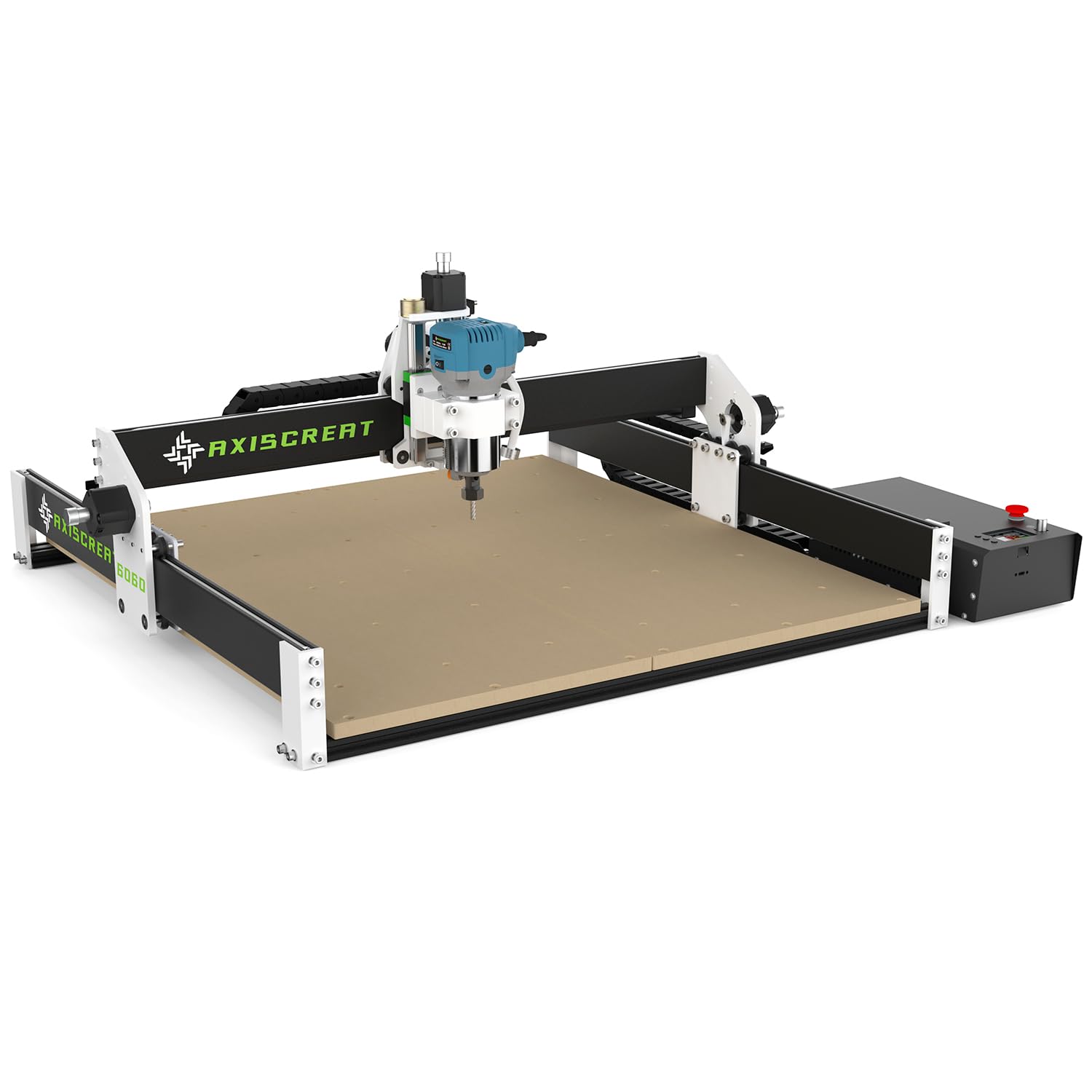

**PARTS ONLY**Axiscreat CNC Router Machine 6060, 710W Power Trimmer Router, Linear Rails and Belt Driven, 3-Axis Cnc Engraving Milling Machine for Wood Acrylic Aluminum, Working Area 23.6" x 23.6" x 3.74"

Features

• Linear Rails & Belt Drive: Our Axiscreat engraving machine uses a belt drive for the X/Y axes and a linear guide for the Z-axis. The maximum speeds are 3500mm/min for the X/Y axes and 500mm/min for the Z-axis. Equipped with an automatic tool-setting probe and light recognition contact signal, it allows operation without powering the spindle, meeting high-speed and precision requirements
• Performance: It features a 710W trimmer router and a 42mm NEMA 17 stepper motor, suitable for engraving various materials. The speed range is from 6000 to 30000 RPM, adjustable via the knob on the trimmer router itself
• Working Area and Structure: The working area measures 23.6 x 23.6 x 3.74 inches (60 x 60 x 9.5 cm) and is suitable for cutting, engraving, and drilling on materials such as wood, MDF, acrylic, aluminum, leather, and metals. The machine weighs 23 kg and has a robust structure to minimize vibrations. The X/Y axes use eccentric nuts for stable adjustments
• Control and Expansion Functions: Based on open-source Grbl v1.1, it features a replaceable 32-bit chip driver. Supports various expansion functions, including NEMA 23 motors, MPG, and laser output. When replacing the stepper motor, the drive chip must be replaced simultaneously
• Diversified Control Methods: Standard equipment includes an offline controller and power box with two 110V sockets controllable via the offline controller to manage the power on/off for the trim router and vacuum. Operable via the offline controller, PC application, or manually. The offline controller has a 2.5-inch display, making it user-friendly. A USB cable is required to connect to a computer application
• Modular Design: Pre-assembled modular design allows for installation within 20 minutes, with only a few assembly steps and electronic wiring required before starting projects. Installation instructions are included in the package. The 6060 CNC router is ready for all your projects
