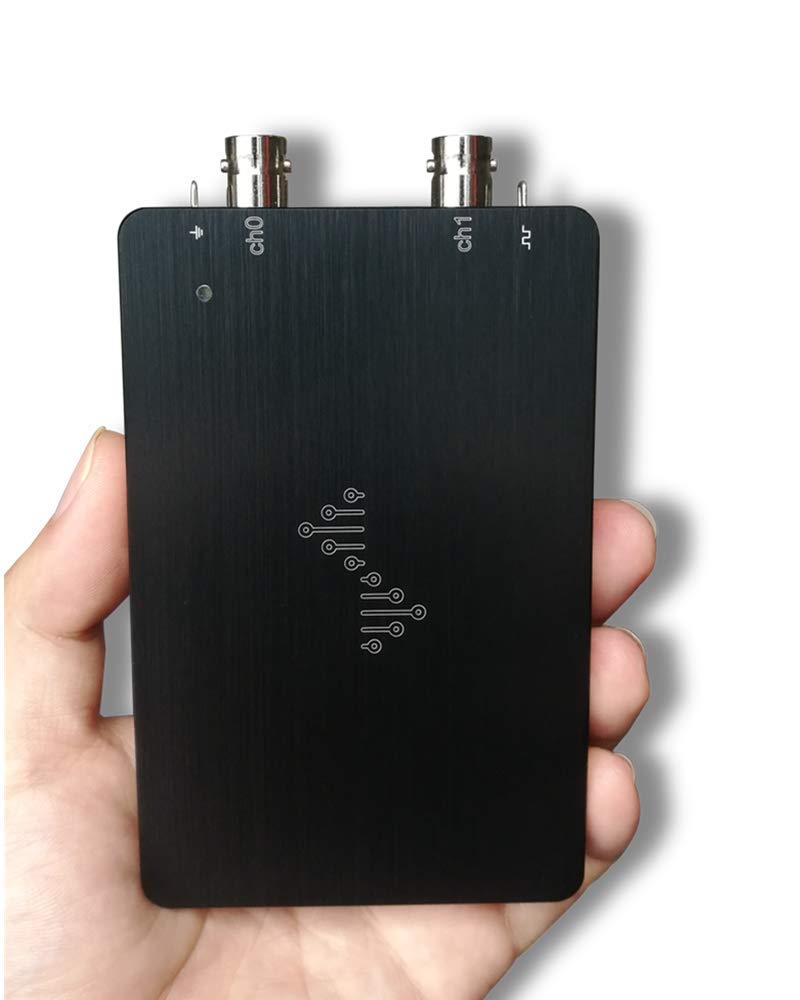

Oscilloscope

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 2 analog channels, up to 100M front-end bandwidth and max 1GSa/s real-time sample rate. It's achieved by single-chip 1GHz ADC.
• Ultra-portable size, so that you can put it in your shirt pocket. And it's shipped with a storage box for your convenience.
• FPGA-based waveform processing engine. With 2Gbits hardware memory, it has 2M(single-channel) / 1M(dual-channel) sample depth in real-time mode, and 256M(single-channel) / 128(dual-channel) sample depth in single acquisition mode.
• USB 3.0 type-c interface, and it's totally USB port powered.
• Worked with DSView software, which is compatible with Windows, macOS and Linux. DSView also support FFT-based spectrum analysis and x-y mode lissajous figure display. It's also an open source software, you can find it on github.
