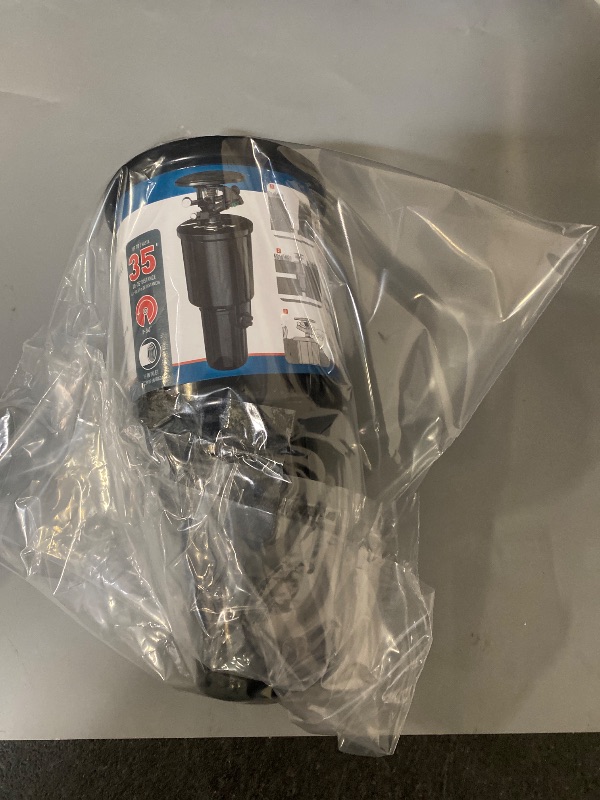

Orbit 55200 Pulse Pop-Up Impact Sprinkler Head

The Pulse pop-up impact sprinkler is engineered to handle the demands of high-mineral content, dirty, and reclaimed water without clogging. The double-weighted impact arm ensures reliable operation even under high pressure. It is ideal for landscape areas which require a throw distance of up to 35 feet between sprinkler heads. Its arc is adjustable from 20 to 360 degrees, which gives you the ability to aim it so that the water hits the landscape only and avoids any hardscape surfaces. The 3-inch pop-up height ensures that the nozzle clears tall grass. It comes with a pre-installed 3 gallon per minute (GPM) nozzle which results in a full-pattern precipitation rate of 0.18 inches per hour at 40-foot square spacing at 40 PSI. This very low rate reduces the risk of runoff or puddling for many soil types and conditions. It includes a radius adjustment screw which allows you to reduce the impact throw down to 75 percent of its rated distance. The can and riser stem are made from high impact ABS and the metal components are made from stainless steel. Arc adjustment stops make setting the pattern simple and tool free. You can create a full pattern by simply flipping up the trip pin. Both the side inlet and bottom inlet are 1/2-inch female pipe thread (FPT). A slotted plug seals whichever inlet is not in use. The typical method for installing or replacing a pop-up impact is on a 1/2-inch male pipe thread (MPT) riser into the bottom inlet or a 1/2" swing pipe fitting into the side inlet. The Pulse replaces pop-up impact rotors from Orbit, Hydro-Rain, and other major brands. Recommended operating pressure is 40 PSI. For outdoor irrigation use with cold water only.
