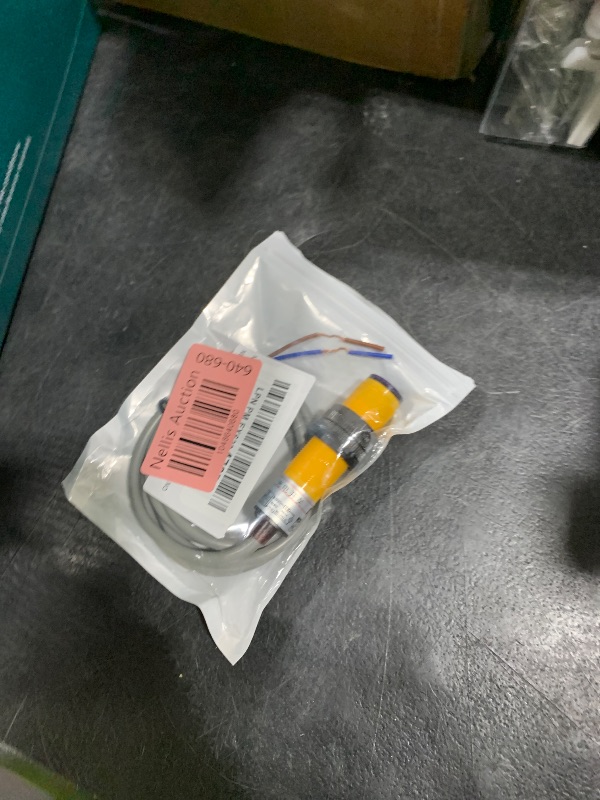

NOYITO E3F-DS10Y1 Proximity Switch Photoelectric Sensor 10 cm Detection Distance Diffuse Reflection Infrared Switch AC 90-250V 2-Wire NO

Product Model: E3F-DS10Y1 Working voltage: AC 90-250V. Reflection form: diffuse reflection type. Wire description: brown - power positive; blue - power negative; Sensing distance: 10 cm （Non-adjustable） Standard detection object: 2mm or more non-transparent objects. Diffusion angle: cast light angle 3-5 degrees. Static current: ≤20mA-35mA. Connection: wire lead, wire length 1.2 meters / about 3.9 feet. Maximum output current: 300mA. LED indicator status: red light is on when power on. Light source (wavelength): 950 Circuit protection: reverse connection protection, short circuit protection, surge protection. Sensitivity Adjustment: Tail knob adjustment. (Clockwise adjustment, the detection distance becomes farther; counterclockwise adjustment, the detection distance becomes closer). Use of environmental illumination: by the light surface illumination and other effects of distance attenuation. (incandescent lamp 300 lx below, sunlight 11000lx below). Operating ambient temperature: - 13F ~ 176F. Storage ambient temperature: -40F ~ 176F. Operating Humidity Range: 35 ~ 80%. Storage Humidity Positioning: 35 ～ 95%. Insulation Resistance: 20MΩ. Vibration: 10 ~ 55Hz double amplitude, 1.5mm X,Y,Z each direction 2H. Protection structure: IEC specification IP65. Material: Shell-ABS plastic, Lens-PMMA. Size: 68x21x21mm (length 68mm, diameter 21mm cylinder). Weight: 54 grams / 0.12 lbs Packsge Included: 1pcs NOYITO E3F-DS10Y1 Proximity Switch Photoelectric Sensor Switch
