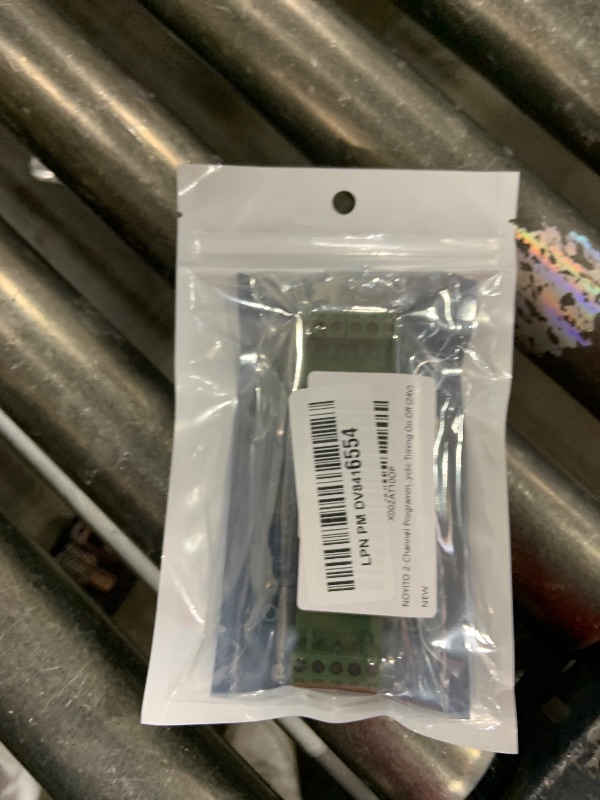

NOYITO 2-Channel Programmable Time Relay Module Dual Relays Triggered in Turn or Individually 2-Channel 0-99.9V Voltage Detection Control Board Cyclic Timing On Off (24V)

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• The VLC2.0 controller can perform a variety of control functions by adjusting the timer, each time relay can run individually, there also can run in turn, dual time relay can be controlled by detect dual channel voltage.
• Such as control two loads simultaneously or alternately ON/OFF, single-phase motor positive and reversion according to the timing, or DC motor positive and reversion, or dual solenoid valve timing work in rotation (controlled pneumatic) or dual alternating bright lights etc.
• Digital LED displays, set by three keys, simple, powerful, with reset settings function. High-performance microcontrollers, industrial-grade reliability, high process stability, low power, digital displays can be automatically off , the minimum operating current at 7mA/12V, with reverse power protection , surge current shock protection .
• Each group of relay contacts to a common and normally open, normally close, two sets of conversion; Dual time relay, timer range: 0.1 seconds ~ 9999 minutes adjustable, close/ open cycles is adjustable from 0 to 999 ( “0” means infinite loops ) , timer relays can be set to close first or open first;
• NOYITO 2-Channel Programmable Time Relay Module User Manual https://1drv.ms/b/s!AlzQUCOyZQhKggTrs7-H5grFolYt?e=qpDLKT
