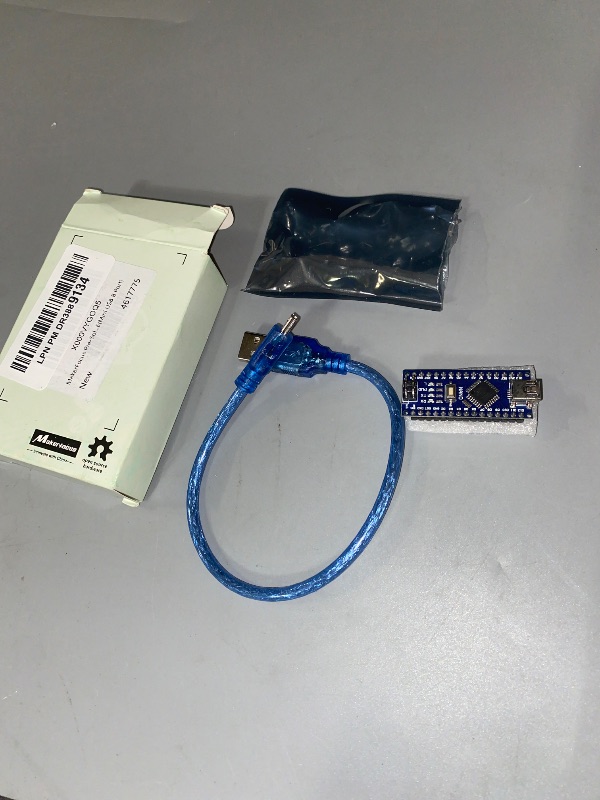

MakerFocus Pre-Soldered Nano V3.0 Board ATmega328P Microcontroller CH340 Chip 5V 16M with USB Cable Compatible with Arduino IDE(Mini USB B Port)

Nano V3.0 ATmega328P Microcontroller Board w/USB Cable for Arduino Features: Fully compatible with Arduino Nano V3.0 ATmega328P-AU ATmega328 Microcontroller Bootloader installed, ready to upload sketches from Arduino software Microcontroller: ATmega328P-AU Operating Voltage: 5V Input Voltage (recommended): 7V-12V Input Voltage (limits): 6V-20V Digital I/O Pins 14 (of which 6 provide PWM output) Analog Input Pins 8 DC Current per I/O Pin: 40mA DC Current for 3.3V Pin: 50mA Flash Memory: 32 KB (ATmega328) of which 2 KB used by bootloader SRAM: 2 KB EEPROM: 1 KB Clock Speed: 16 MHz Dimension: Approx. 45x17x19mm Cable Length: 245mm Color: Blue(as the picture shows) How to use: 1.Download IDE of Arduino Download link: http://arduino.cc/en/Main/Software (Copy to open) 2.Download USB Chip driver Download link: https://www.wch-ic.com/downloads/category/30.html?page=1 3.Plug NANO development board, the driver will automatically install 4.Choose the NANO board in the die 5.Select the COM port, this can be in My Computer inquiries, just inside your UNO development board port 6.The best choice, Arduino comes with the routine program, burning into it Youtu be video: https://www.youtube.com/results?search_query=Mini+Nano+V3.0+ATmega328P Package Content: 1 * Nano V3.0 ATmega328P Arduino Compatible Board 1 * Mini USB Cable
