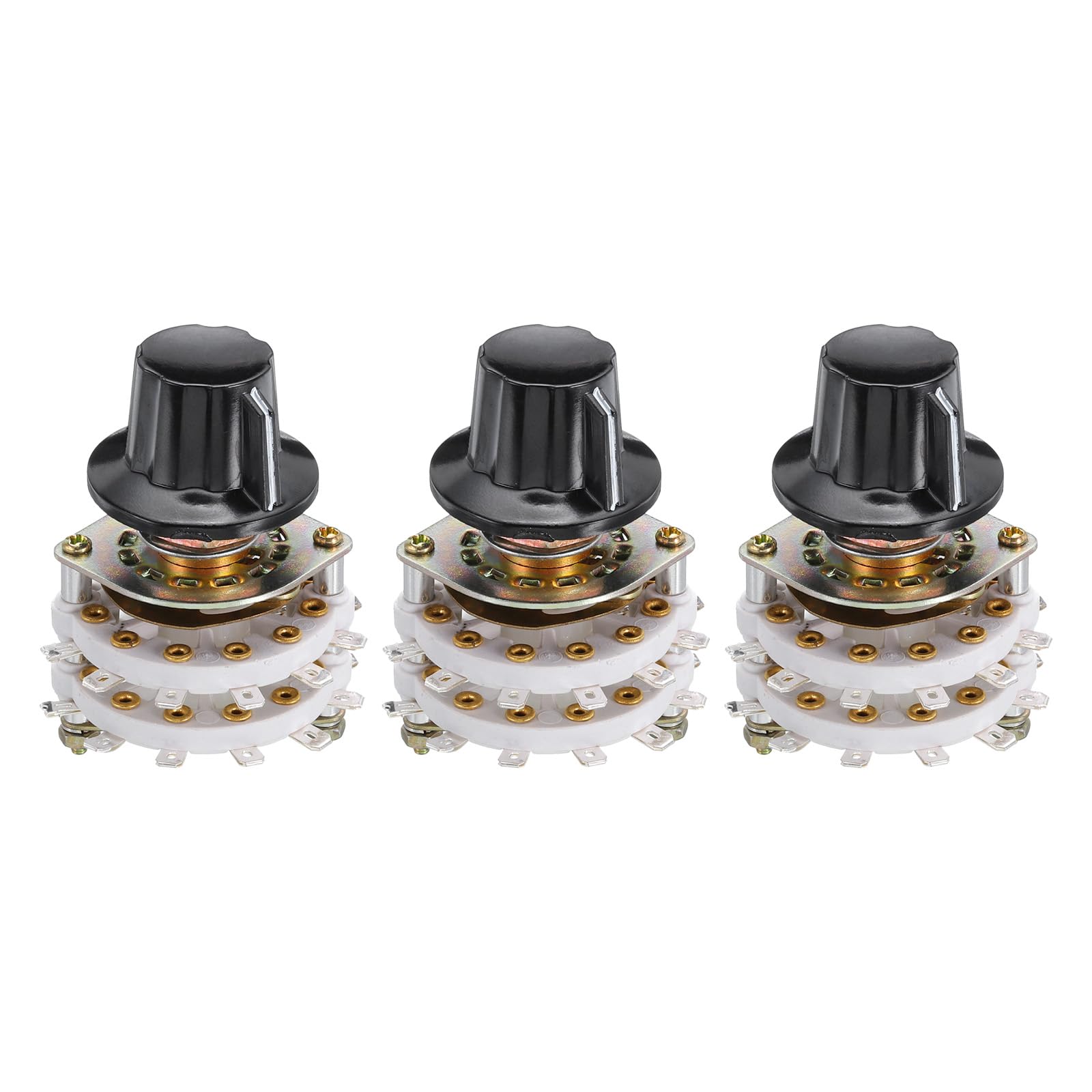

MECCANIXITY 2P8T Rotary Switch 2 Pole 8 Position Band Selector 2 Deck for TV Radio Home Machine 3 Pcs

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• This product is a band switch, also known as a multi-pole multi-throw switch. It features multiple levels and positions, with various contact pieces fixed on an insulating substrate.
• Contact Type: 2 Pole 8 Position; Number of Deck: 2 Deck; Total Dia: 42mm / 1.65 Inch; Thread Dia: 9.8mm / 0.38 Inch; Shaft Dia: 5.8mm / 0.22 Inch; Shaft Length: 9mm / 0.35 Inch; In the package of: Rotary Switch x 3 Pcs; K18-2 Rotary Knob x 3 Pcs, gasket x 3 Pcs, nut x 3 Pcs;;
• The band channel rotary switch selector is widely used in applications such as radio, TV industrial machine control units, and other electronic devices. It offers versatility and flexibility for managing multiple inputs and outputs.
• Connect the appropriate wires or circuits to the specified pins on the switch. Use the rotating shaft to select the desired position or contact. The switch can be easily operated to switch between different configurations or functions.
• Please confirm the correct size before ordering.
