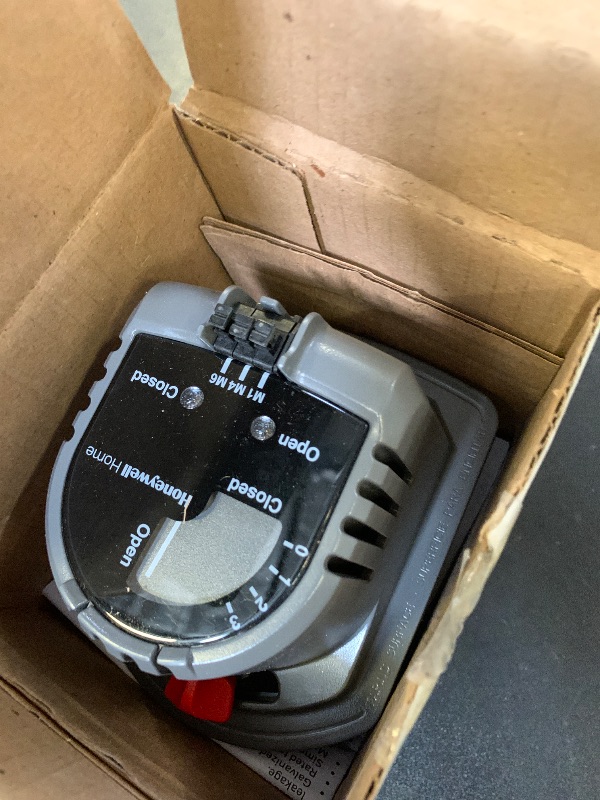

M847D-Zone Valve Actuator, Replacement Motor for ARD & ZD Zone Dampers, Compatible with Honeywell M847D1004 M847D Zone Valve Actuator Damper Operator 24V

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• Application – 24V spring-return actuator designed for most ARD and ZD zone dampers . ⚠️ (Not compatible with EARD vent models.The EARD is a spring-closed vent damper).
• Precise Control – Adjustable minimum and maximum range stops let you fine-tune airflow and comfort, ensuring the HVAC system delivers the right temperature for each zone.
• Perfect Replacement – Direct replacement for M847D1-004, M847D, M847D1004 actuators used with standard ARD & ZD dampers. Ideal solution when your original actuator motor fails
• Efficient Operation: 30 seconds power open / 10 seconds spring return, low-voltage, power closed and spring open
• Easy Installation – Direct-mount coupling fits 3/8" ARD/ZD damper shafts. Tool-less wire terminals accept 18–22 AWG solid wire. Wiring: M1–Common, M6–Power Closed, M4–Optional LED for straightforward setup
• Specifications – Voltage: 24V, 60 Hz, 0.32A, 8VA | Rotation: 90° nominal (max 105°) | Torque: 60 in·oz (0.423 Nm) | Timing: 30s close / 10s return | Ambient: 40–140°F (5–60°C).
• NOTICE :OLDER-STYLE ARD & ZD (7/16” DIA. COUPLING STYLE DAMPERS):Most versions of ARD and ZD dampers will work with the new M847D-ZONE actuator. Some older ARD and ZD dampers have a different shaft diameter and the new actuator will not fit. If the actuator has failed,replace the damper.
• Please measure your damper shaft and confirm compatibility with a qualified HVAC technician before purchase
• Non-original aftermarket part
