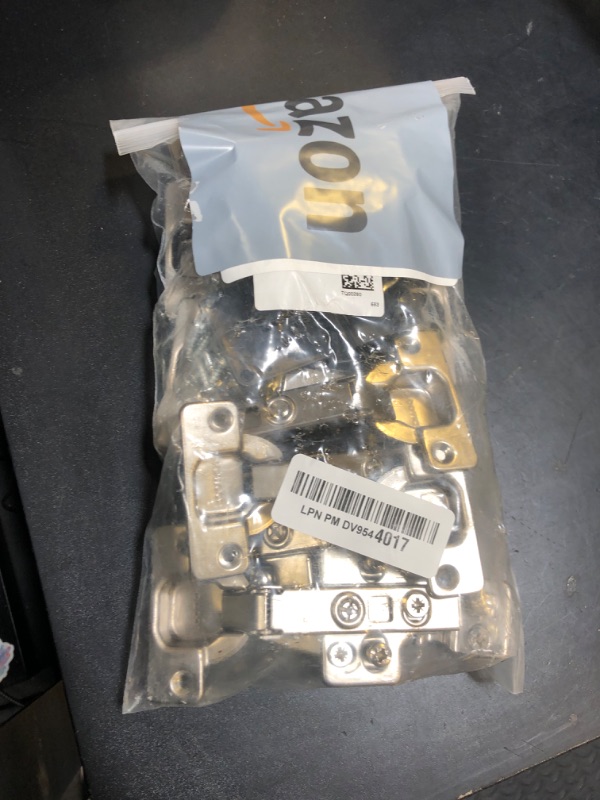

LOOTICH 110 Degree Full Overlay 35mm Soft Close Hinge with Hydraulic Damper for Kitchen Cabinet Cupboard Wardrobe Door Automatic Hinges with Cushioning European Type Pack of 8

Product Details >Type: LOOTICH Full overlay mounting, Automatic soft closing hinges for European type >With automatic soft closing (damper) >Opening angle: 110 degree >Drilling cup diameter: Ø 35mm (standard size) >Drilling Depth Hinge cup min.: 11.5 mm >Drilling dimensions for cup fixing : Drilling pattern (48mm / 6.5mm) >For side panel thickness: 16mm (min.) - 19mm (max.) >For door thickness: 16mm (min.) - 19mm (max.) >Hinge Cranking: 0 mm >Material: Stainless Steel >Finish: Nickel plated pressed steel cup and arm >Door mounting option: Full Overlay/ Corner stop >Cover cap for carcass: No >Adjustment: Side adjustment ± 2.5 mm, Height adjustment ± 2 mm, Depth adjustment -2 mm to +2 mm Mounting Plate >3-dimensional adjustment of the cabinet doors in depth, width, and height >with pre-mounted special screws >Screw spacing: 32mm Package Contents >hinges: Pack of 8 >with cross mounting plate and screws Important Dimensions and gap specifications in drawings and tables are calculated using factory settings and for mounting plate distance 0 mm
