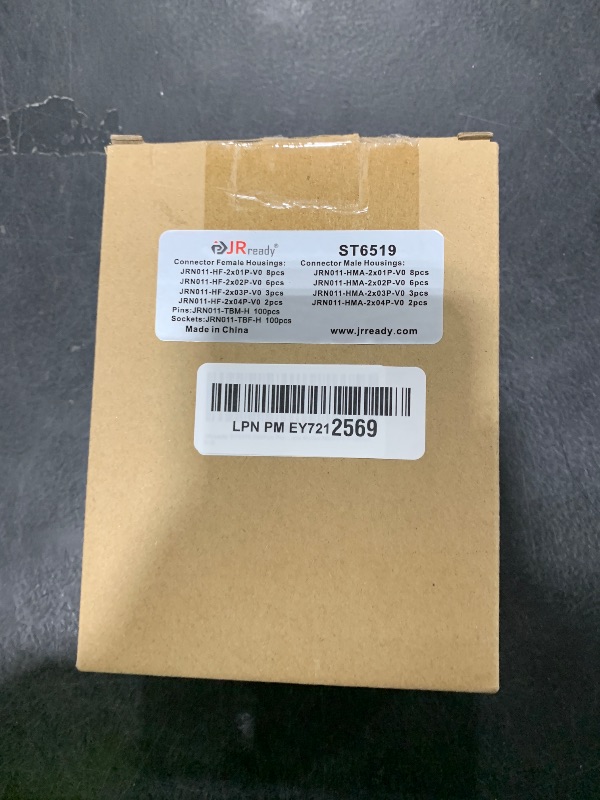

JRready ST6519 238Pcs Mini-Fit Jr Pin Connector Kit Wire Automotive Electrical Male Female Connector 18-24AWG Terminals Pin and Sockets Molex 4.2mm Pitch

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• JRN011 SERIES CONNECTOR: 4.2mm pitch connector is made of PA66, Flame retardant grade is UL94-V0. The operating temperature range is from -40℃ to +105℃. Under environmental conditions of 23℃ ± 5℃, the temperature rise at 9A current is no more than 30℃. The connector can be mated and unmated over 50 times.
• CONNECTOR DESIGN: Connectors are ideal for power applications up to 9 amps per circuit, and feature fully isolated terminals, positive housing locks, low engagement forces, and polarized housings.The receptacle housing can be connected with a variety of plug options, including panel mount and free hanging plugs, or vertical and right angle headers.
• CONTACTS DESIGN: The 18-24AWG contact is made of tin-plated brass. Crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing.The kit includes a large quantity of terminals for crimping practice or as spares, providing a great user experience, especially for beginners.
• JRREADY TOOL for JRN011 SERIES CONNECTOR: The crimper: ACT-SY-JRN011S-H. Pin removal tool：JRconDRK-D173P: enhanced for a superior grip with an enlarged size and protective cover; JRDDS-D173: high strength and hardness, magnetic deburring and polishing ,upgrades metal handle; DAP-D173: Hardened alloy steel and innovative push rod design. You can buy these tool at JRready Store.
• "COMPATIBLE with MOLEX MODELS: 2 pin connector-39-01-3029/39-01-2025; 4 pin connector- 39-01-3049/39-01-2045; 6 pin connector-39-01-3069/39-01-2065; 8 pin connector-39-01-3089/39-01-2085; Contacts pin: 39-00-0040/39-00-0041，socket: 39-00-0038/39-00-0039."
• WIDELY USED: Apply in wire to board and wire to wire combinations for industrial . The connectors widely used to household appliances, electrical maintenance, consumer electronics, network servers, industrial automation, data computing.
