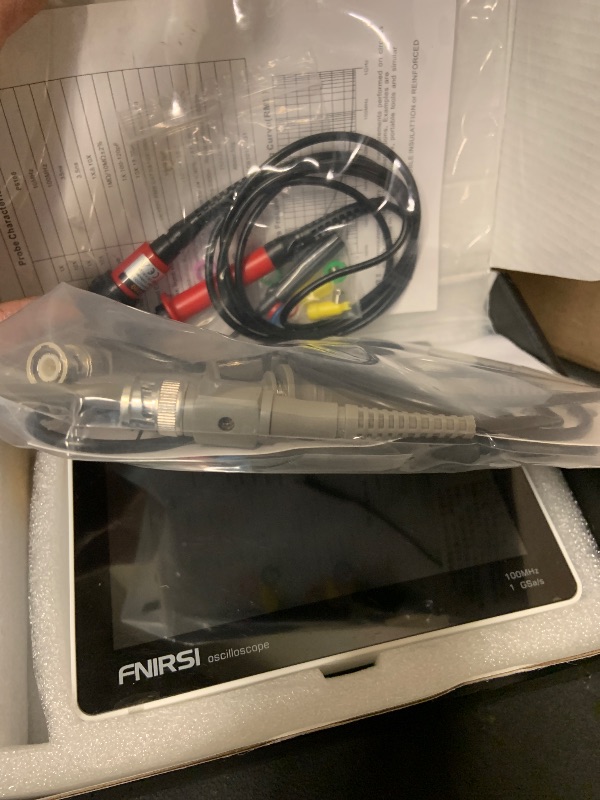

FNIRSI 1013D Plus Oscilloscope - Portable Handheld Tablet Oscilloscope with 100X High Voltage Probe, 2 Channels 100Mhz Bandwidth 1GSa/s Sampling Rate 7" TFT LCD Touch Screen

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• Touchscreen Oscilloscope: FNIRSI oscilloscope with 1 GSA/S sampling rate and 100 MHZ * 2 bandwidth. Fnirsi oscilloscope has a complete trigger function (single/normal/automatic), it can be used for both periodic analog signals and aperiodic digital signals
• Portable Design: 7 inch, 800 * 480 resolution, bright colors, high contrast. Ultra-thin and easy to carry. Built-in high-voltage protection module, can tolerate a continuous voltage of up to 400 V. 6000 mAh lithium battery, sustainable use of 4 hours
• Waveform Image Manager: 1 GB storage space can store up to 1000 screenshots 1000 sets of waveform data. Waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning and waveform zooming in, zooming out, moving, etc
• Easily Measuring : Capacitive screen touch & gesture operation, cursor measurement, when manually reading amplitude-frequency parameters, and you can directly get the peak-to-peak value and frequency without reading the background scale unit and quantity
• Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal
