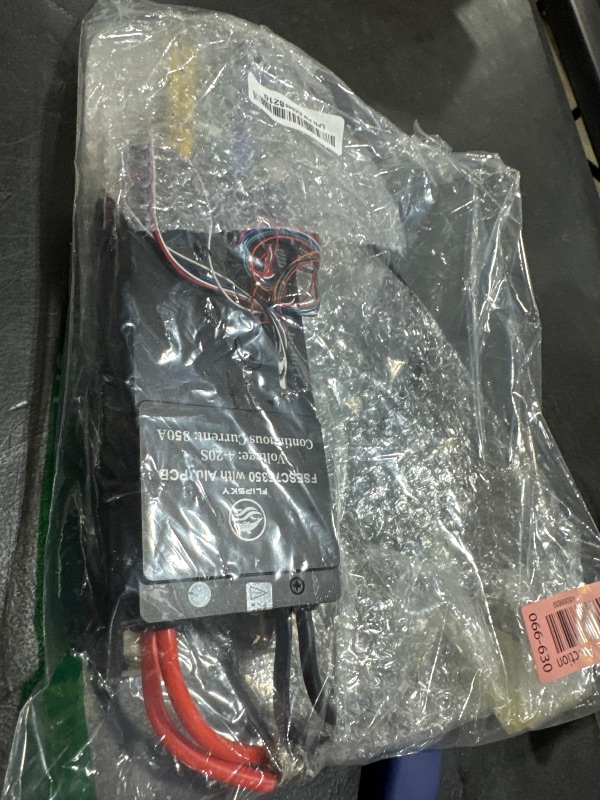

FLIPSKY FSESC 75350 84V High Current 350A ESC Base On Vesc with Aluminum Case Water Cooling Enclosure for E-Foil Fighting Robot Surfboard AGV Robot

Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface. Spec: Voltage:14-84V( safe for 3-20S) Continuous Current : 50V/350A,75V/250A Max Current :800A Supported sensors: ABI, HALL, AS5047,AS5048A EPRM:150000 Size:200*94.6*50mm((Including the height of water pipes and electrolytic capacitors) Feature: Regenerative braking The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function; Sensored or sensorless operation + hybrid mode Configurable RPM-, current-, voltage- and power limits Input source: PPM, ADC, NRF,UART,PAS Communication ports: USB, CAN, UART,SPI,IIC Throttle curve and ramping for all input sources Seamless 4-quadrant operation Motor revolution, ampere hour, watt hour counting Real-time data analysis and readout through the communication port. Adjustable protection against: Low input voltage High input voltage High motor current High input current High regenerative braking current (separate limits for the motor and the input) High RPM (separate limits for each direction) Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate Motor wire: 8AWG Power cable: 8AWG Waterproof level(with water cooling enclosure):IP67
