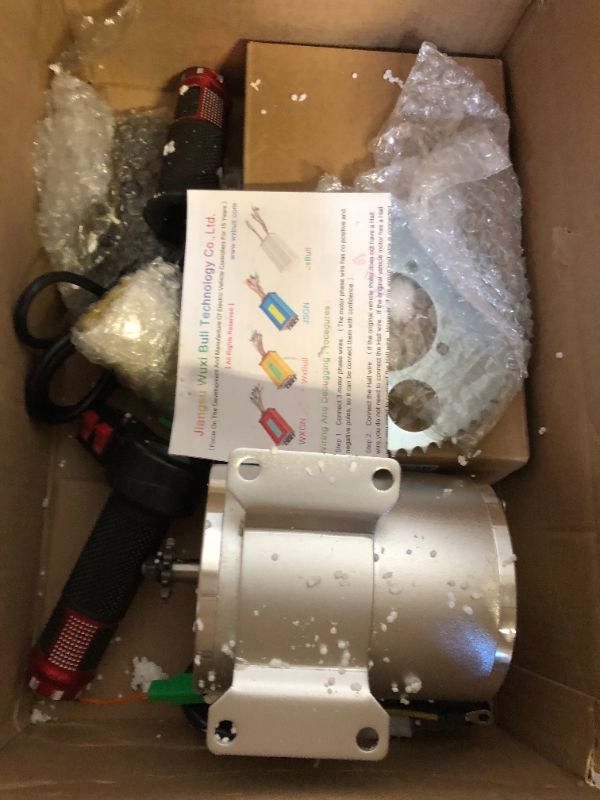

Electric Brushless DC Motor Complete Kit, 48V 2000W 4300RPM High Speed Motor, with 60A 18 Mosfet Controller, 3-Speed Throttle, Electric Scooter Bicycle Motorcycle Mid Drive Motor, DIY Part

36V-84V 45-60A brushless controller Name: Intelligent dual-mode brushless controller Rated Voltage: 36V-84V Low Voltage : 32V Rated Power: 2000W-3000W Limit Current: 60A Number of brushless controller tube：18 Weight：1000g Brushless controller function： 1.low level brake 2.speed control handle（throttle） 3.cruise 4.hall 5.reverse gear 6.PAS 7.high level brake 8.intelligent recognition（self-learning） 9.phase meter 10.hall meter 11.three speed gear 12.electric door lock（must connect） 13.anti-theft alarm signal（is connect to alarm，if not have alarm，not need connect） 14.anti-theft alarm power（is connect to alarm，if not have alarm，not need connect） 15.multiple data meter 16.motor phase line 17.battery How to connect controller？ 1.connect the motor phase line(color to color） 2. connect the battery line(red:battery+ , black:battery-) 3. connect the controller throttle to throttle and need color to color connect,connect controller electric door lock to throttle electric door lock（if throttle not have electric door lock, controller electric door lock docking,so controller electric door must connect ） 4. connect the hall line(color ro color connect) 5.off power,docking the two intelligent recognition line, open power,the wheel will forward or reverse. (1.if wheel forward ,Separate the intelligent recognition line. 2.if wheel reverse, Separate the intelligent recognition line. Docking the intelligent recognition line again if wheel forward ,Separate the intelligent recognition line.) note：when use throttle，intelligent recognition line must separate. 6.other functions can be connected as needed.
