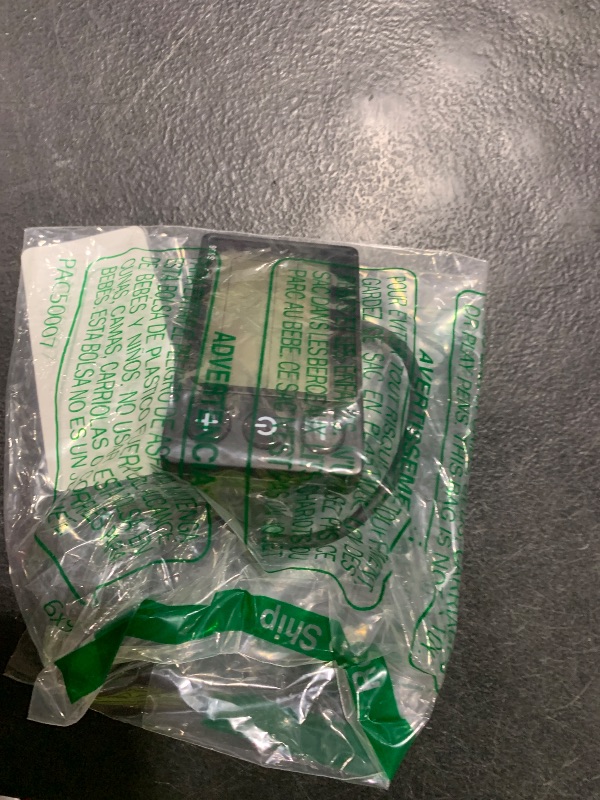

Electric Bike LCD Display Meter, 24V 36V 48V E Bike Display Meter Control Panel with Waterproof Plug Conversion Kit for Electric Scooter 22.2mm/0.9in Handlebars

Features

• Please Note: The default compatibility of our electric bike meter is the No. 2 protocol controller, 5-core waterproof wiring. For the specific connection method, please check our wiring diagram. This product also supports 5S/J protocol setting through P20, but the line position function must be correct, the instrument power supply and signal reception and transmission must be normal (special protocols such as KT are not applicable)
• Adjustable Voltage: Please note that the default value of the meter output voltage is 36V, and the product can be applied to 24V/36V/48V/52V/60V bicycles. You need to adjust it when it can be used normally. You only need to adjust the voltage through P03 for normal use
• Confirm the Line Position: Use a multimeter to measure the female end of the plug. The port with the battery voltage is used to power the instrument. The signal receiving and sending is lower than 5V and the voltage fluctuates
• Simple Installation: Our products are only suitable for electric bicycles installed on handlebars with a size of 22.2mm. Please install it on the left hand side of the bicycle/electric bicycle, and then tighten the screws to adjust
• Widely Compatible: Our electric bike meter is suitable for most electric bicycles. But you must confirm whether it is compatible before use. If you have any questions, please contact us directly and we will give you a perfect solution within 24 hours
