Digital Gas Flow Meter, Nitrogen Flow Meter, Portable Gas Mass Air Flow Meter, Compressed Air and Oxygen Flow Rate Meter Tester, Range 0-20L/min (MF5706)
Digital Gas Flow Meter, Nitrogen Flow Meter, Portable Gas Mass Air Flow Meter, Compressed Air and Oxygen Flow Rate Meter Tester, Range 0-20L/min (MF5706)
Description

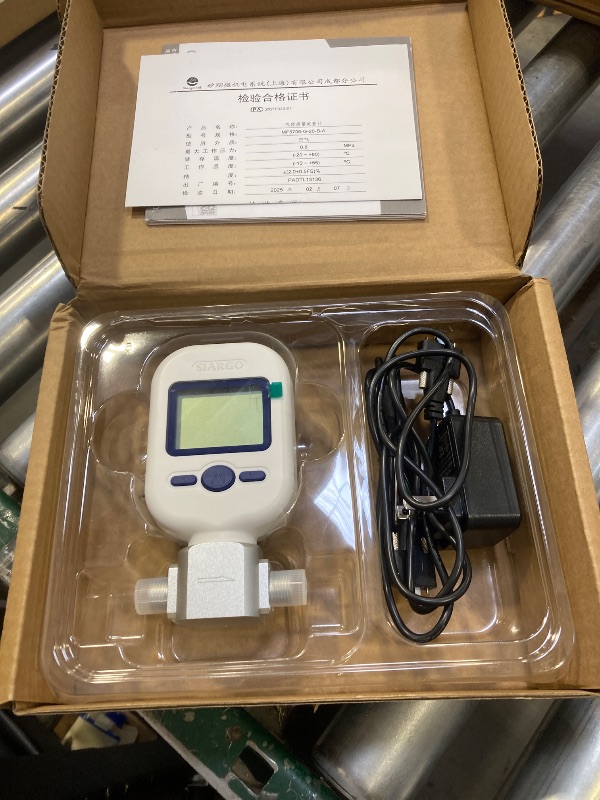

SPECIFICATION Model: MF5706 Flow Range: 0-20L/min Accuracy: ±(2.0+0.5FS)% Repeatability: 0.5% Response Time: ≤2sec Resolution: 0.01L/min (instantaneous flow), 0.001m3 (cumulative flow) Work Pressure Limit: 0.8MPa Pressure Loss: ≤600Pa Standard Calibration: Air (20℃, 101.325kPa) Pipe Dia.: 6mm Mechanical Interface: G 1/4” Protection Rating: IP50 Operating Temperature: -10℃~+55℃ Storage Temperature: -20℃~+70℃ Weight: 0.55 lb. PACKAGE 1 x Digital Gas Flow Meter 1 x Power Adapter 1 x Instructions
Item Details
Pickup Location
3591 John Peter Lee St
North Las Vegas, NV, 89032
Quality
Auction closes
August 28, 2025 at 4:17 AM
brand
VQPEstimated Retail Price
$205.19
Buyers Premium
15%
Inventory Number
1048891124
Found in
Features
- MEMS-based gas flow meter boasts a high sensitivity, allowing a very small start flow, used for instantaneous flow testing and flow accumulation calculations, applicable to air, compressed air, oxygen, nitrogen, and other inert gases
- Compressed air nitrogen flow meter has a built-in sensing chip for thermal mass flow measurement, no temperature and pressure compensation, ensuring a high accuracy
- Nitrogen air flow meter features an LCD display to show instantaneous flow and cumulative flow at the same time as well as the battery level, 180° rotating for reading from any angle
- Portable air flow meter has a compact body with G 1/4” thread, easy to set up and install, designed with RS485 communication interface
- Nitrogen flow meter allows 2 power supply methods, either powered by mains power or by 4x AA battery (not included)
- NOTE: To ensure the measurement accuracy of the flow meter, it needs to be preheated for 1min before use.
