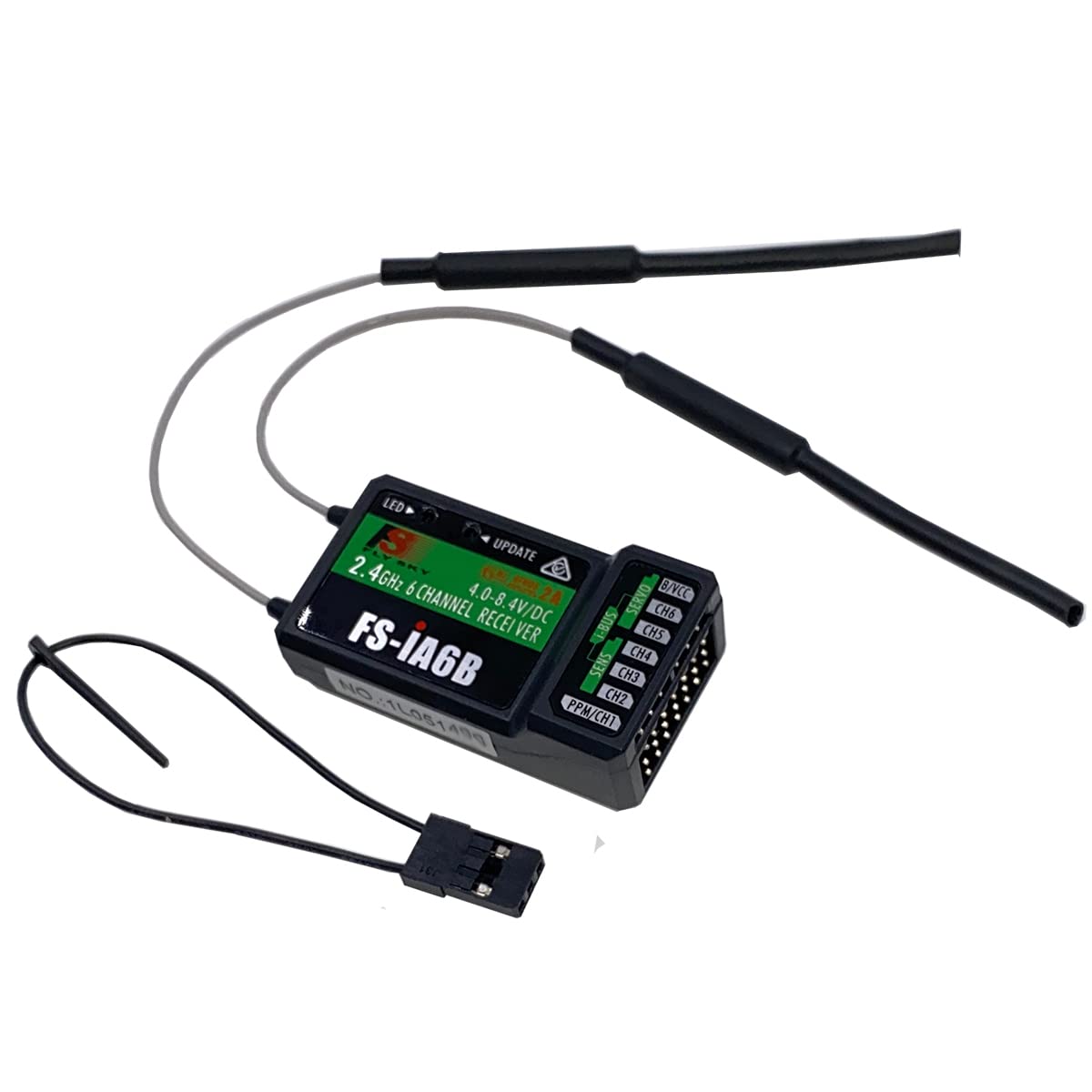

DTXMX Flysky Receiver FS-iA6B 2.4G AFHDS 2A 6Channels Support PWM/PPM/i-Bus Output Compatible Flysky FS-i6 FS-i6X FS-i6S and i10 RC Radio Transmitter

How to bind with FLYSKY transmitter(fs-i6,fs-i6x)? 1, Connect the supplied bind cable to the B/VCC port on the receiver. 2, Insert power into any other port. 3, Hold the "BIND KEY" while powering on the transmitter to enter bind mode. 4, Remove the power and bind cable from the receiver. Then connect the power cable to the B/VCC port. 5, Check the servos' operation. If anything does not work as expected, restart this procedure from the beginning. FS-IA6B Specification: Item Name: FS-iA6B Channel: 6 Frequency Range: 2.4055--2.475GHZ brand Width Number: 140 Transmitting Power: ≤ 20dBm RF Receiver Sensitivity: -105dbm 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system Encoding: GFSK Antenna Length: 26mm * 2 (dual antenna) Input Power: 4.0-8.5V DC Dimension: 47 x 26.2 x 15mm Weight: 14.9g i-Bus /PPM/PWM Interface: Yes Data Acquisition Interface: Yes Model Type: Airplane / Glider / Helicopter Package Included: 1x Flysky fs-ia6b receiver 1x Bind plug
