DSD TECH HM-10 Bluetooth 4.0 BLE iBeacon UART Module with 4PIN Base Board for Arduino UNO R3 Mega 2560 Nano
DSD TECH HM-10 Bluetooth 4.0 BLE iBeacon UART Module with 4PIN Base Board for Arduino UNO R3 Mega 2560 Nano
Description

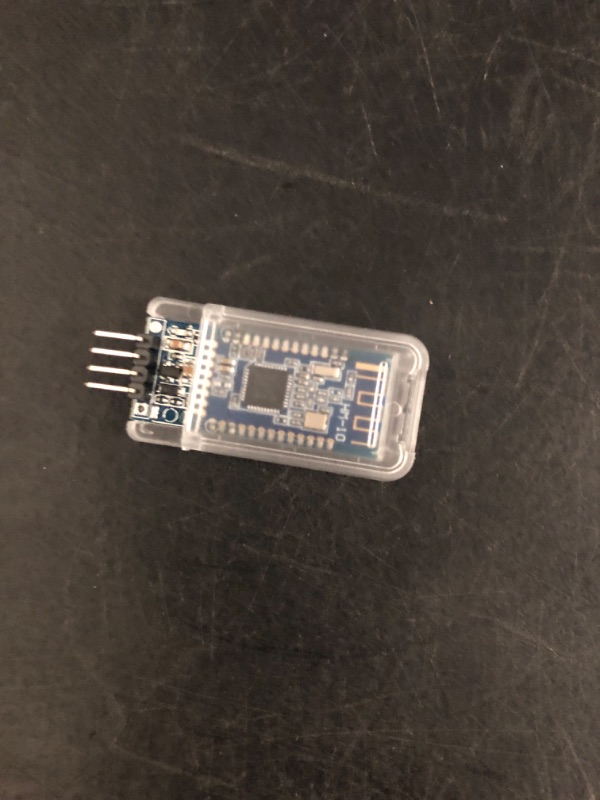

This is a Bluetooth 4.0 module with 4pin base board that can support iphone4s or later. But does not support the version is lower than the android 4.3 phone(it don't support classic bluetooth 2.0 spp features) The core module is HM-10 Base board from DSD TECH Operating voltage: 3.3V to 6V About APP We provide a free app for this module for you to test and use. Search for "DSD TECH Bluetooth", which you can find in appstore and google play. How to Enable Apple Notification Center Service (ANCS) ANCS function 1.1 Please read apple notification ducument first 1.2 Send AT+TYPE3 command change to AUTH and BOND mode. 1.3 Send AT+ANCS1 command to open ANCS. 1.4 Send AT+PASS[para1] command to set passcode. Default passcode is "000000" 1.5 Send AT+RESET to restart module. Now you can use LightBlue to scan and made a connect with module. iOS will ask you input passcode. please input your passcode value. If all is okay, you should receive AT+ANCS[para1] command from module UART. About HM-10 Module Core module is the original HM-10 module, not fake. DSD TECH brand guarantees and we accept refund without any excuse. WARRANTY We back this item with ONE YEAR WARRANTY. If you meet any question, please contact us, we will fix your issue within 24 hours.
Item Details
Pickup Location
470 Mirror Ct Suite 101
Henderson, NV, 89011
Quality
Auction closes
October 23, 2025 at 2:23 AM
Estimated Retail Price
$10.99
Buyers Premium
15%
Inventory Number
1048861887
Additional Details from the Manufacturer
This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing
brand
DSD TECHcolor
Multicolouredweight
0.01 lbsMore features
- Low Energy: With HM-10 bluetooth 4.0 module, you can add Bluetooth features to your project and support iphone4s or later.

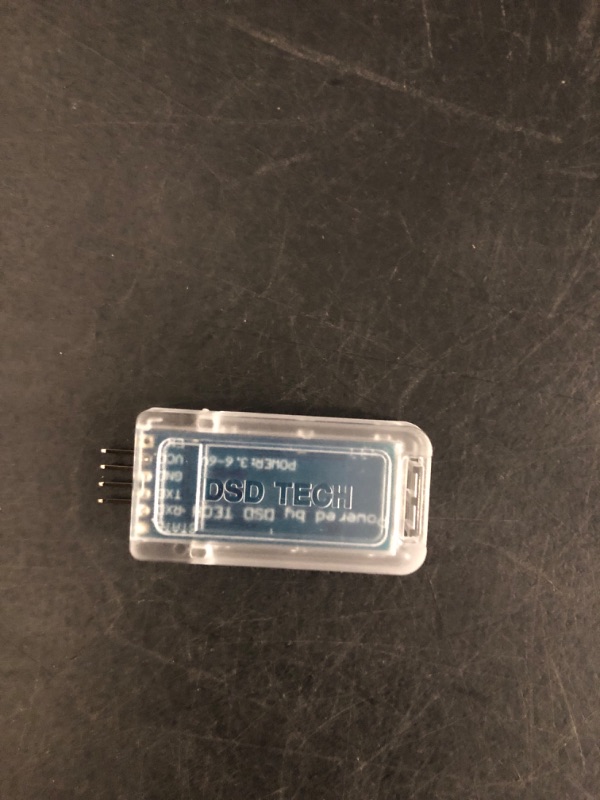

- DSD TECH Brand 4pin Base Board: Through this base board, leads to VCC, GND, TX, RX. You can be very convenient to connect to your arduino project
- Led status indication: when the connection is established will always light, disconnection is flash
- iBeacon Support:You can make this module into ibeacon mode.So you can have your own ibeacon.it also Supports Apple Notification Center Service (ANCS)
- working voltage 3.6 V to 6V,Default rate of 9600. DSD TECH back this Bluetooth 4.0 BLE module with ONE Year WARRANTY. If you meet any question, please contact us, we will fix your issue within 24 hours.
