DC Motor Speed Controller, 110VAC Input 90VDC Output DC Motor Speed Regulator for Fan (400W)

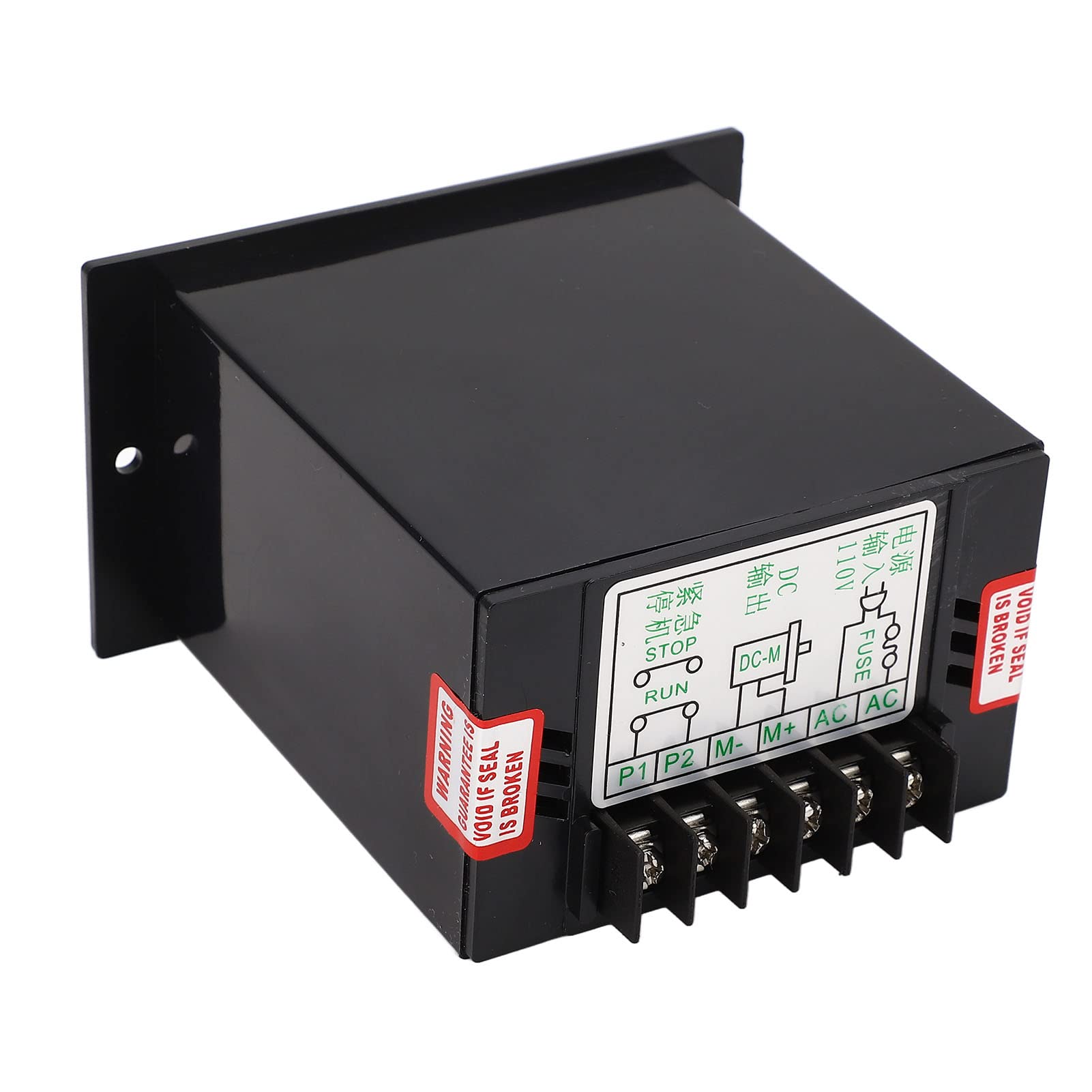

1. MULTI FUNCTION: This motor speed controller supports emergency stop and forward and reverse functions, and convenient to use. 2. 90VDC OUTPUT: The motor speed regulator adopts 110VAC input and outputs 90VDC, suitable for DC motor. 3. HIGH PERFORMANCE: The DC motor has high accuracy, wide speed range and good mechanical characteristics. 4. ABS SHELL: The electric motor speed regulator uses high strength ABS shell, sturdy and firm, and to use. 5. SIMPLE INSTALLATION: The motor speed regulator adopts panel screw installation method, easy to operate. Specification: Item Type: DC Motor Speed Regulator Material: ABS Input: 110VAC Output: 90VDC Overall Size: Approx. 100x60x114mm/3.9x2.4x4.5in Opening Size: Approx. 81x53mm/3.2x2.1in Installation Method: Panel Screw Installation How to Use: 1. Before using, adjust the external speed knob to 0 to avoid generating instantaneous large current and damaging the controller. 2. The rear wiring terminal AC indicates the AC input voltage, M+ and M? indicate the DC power, the output is connected to the DC motor, and and indicate the emergency stop terminal, when and are short connected, the motor stops running. 3. This product uses a built in for overcurrent or . If blown, it should be replaced with a of the same specification. The panel action switch only controls the action or stop of the motor and is not used in the power supply. Package List: 1 Motor Speed Regulator
