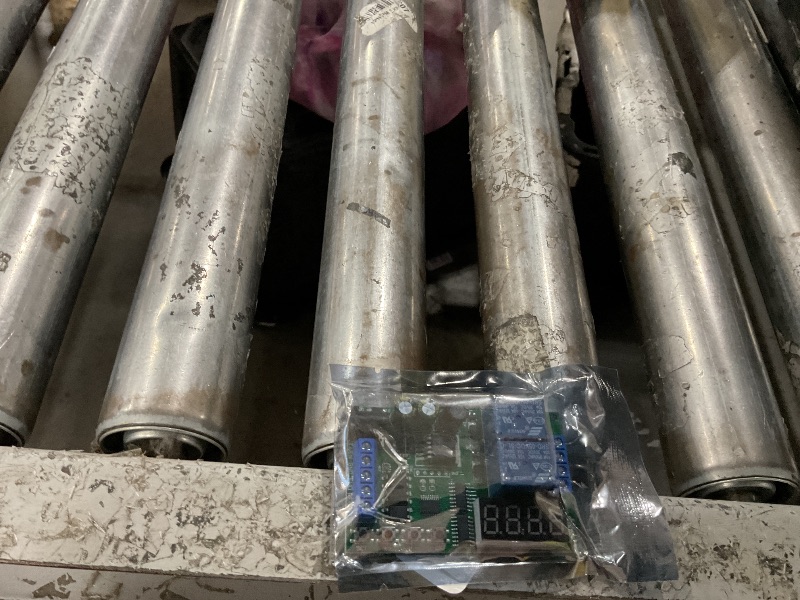

CYTGOUPER 5V - 24V Motor Speed Controller Time Delay Relay, Reverse Motor Timing Cycle Module Motor Controller Board with LCD

Features: Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V Working current: (Normal Mode) standby current 41mA, working current 83mA; (Energy-Saving mode) Standby current 7mA, working current 44mA. There are three input control port: forward control(FWD), reverse control(), and stop control(STOP). Two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes. Cycle times: no cycle, 2-99 cycles, always cycle. Three indicators: forward indicator(F LED), reverse indicator(R LED), stop indicator(S LED). Relay load current, recommended less than 5A. Port: DC 5.5MM female : Power supply 1, DC 5V power supply. VIN: Power 2 positive, DC 6.5-25V power supply GND: Power supply 2 negative FWD: Forward input control (partial Function-Mode is invalid) : reverse input control (partial Function-Mode is invalid) STOP : Stop input control (partial Function-Mode is invalid) M+: Motor positive M-: Motor negative P+: Positive terminal for motor power supply P-: negative terminal for motor power supply Specification: Power supply: DC 6.5-25V, DC 5V Working current: 83mA Standby current: 41mA Relay load current: Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes Size: 8*5cm/3.2*2in Weight: Approx. 51g/1.8oz Trigger mode: 1 low pulse trigger (falling trigger) 2 low level trigger (rising trigger) Timer: T1: Forward timer T2: reverse timer T3: Stop timer Time unit : 0.1 second, 1 second, 1 minute
