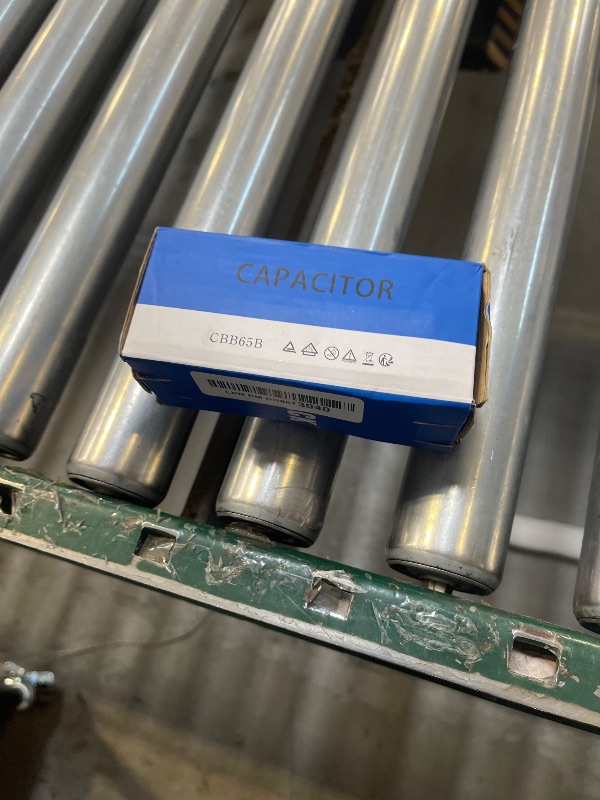

BOJACK 35+5uF 35 5 MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

BOJACK Dual run circular start capacitor ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor. Model: CBB65（Universal model） Shell material: Metal Dielectric Material: Metallized polypropylene film Capacity: 35+5uf Tolerance: ±6% Rated voltage: 370V/440V AC Frequency: 50 / 60Hz Safety rated: 10,000 AFC Capacitor dimension: Diameter<1.97 inch> Height <4.14 inch> Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion. Round capacitor can be used to substitute oval shape one with the same MFD and Volt specs.A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 volt can’t be used in place of a 440 volt.
