AURSINC Upgraded NanoVNA-F V2 Vector Network Analyzer 50KHz-3GHz HF VHF UHF VNA Antenna Analyzer, 4.3inch Touchscreen, 5000mAh Battery, Measuring S-Parameters, SWR, Phase Delay, Smith Chart

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• [Upgraded Version] The NanoVNA-F V2 now supports the latest Firmware V0.6.0, enabling 301 sweep points for ultra-detailed frequency analysis. Allows for firmware upgrades through a virtual USB drive without the need for programmer, using the included USB Type-C cable to upgrade firmware
• [Compact and Powerful] The nano vna f v2 features a 4.3-inch IPS LCD display (800*480) and a resistive touch screen, providing a wide viewing angle and minimizing eye strain during prolonged usage. It is equipped with an 5000mAh lithium battery for longer standby time, up to 7 hours of usage. It enables measurements of S-parameter, voltage standing wave ratio (SWR), phase map, group delay, Smith chart, DELAY, POLAR, LINEAR and more
• [Improved Frequency Range] The measurement range of NanoVNA-F V2 is 50KHz-3GHz. TX/RX method can measure full S11 and S21 parameters, S21 dynamic ranges: 70 dB (1.5GHz), 60dB (3GHz); S11 dynamic ranges: 50 dB (1.5GHz), 40 dB (3GHz). The harmonic expansion of the output signal of the clock chip SI5351 is used to measure the frequency to 1000MHz. At 600M-1GHz, the dynamic range of S11 is 40dB (the standing wave ratio is less than 1.02)
• [Design of Aluminum Cases] Rugged and durable aluminum alloy cases, shielding electromagnetic interference to ensure precise measurements. The SMA radio frequency interface enables seamless connectivity with various measurement devices. The device has a full touchscreen and three side buttons, making it easy and flexible to use
• [PC Software Control Available] Using PC software NanoVNA Saver, it can connect to the NanoVNA, extracts data for display and save data in Touchstone files. The PC software enables us to export Touchstone (snp) files for various radio design and simulation software. For Win10 system, do not need to install the driver; for Win8 and earlier versions of the Windows system, need to install the driver: https://www. st.com/en/ development-tools/stsw-stm32102.html

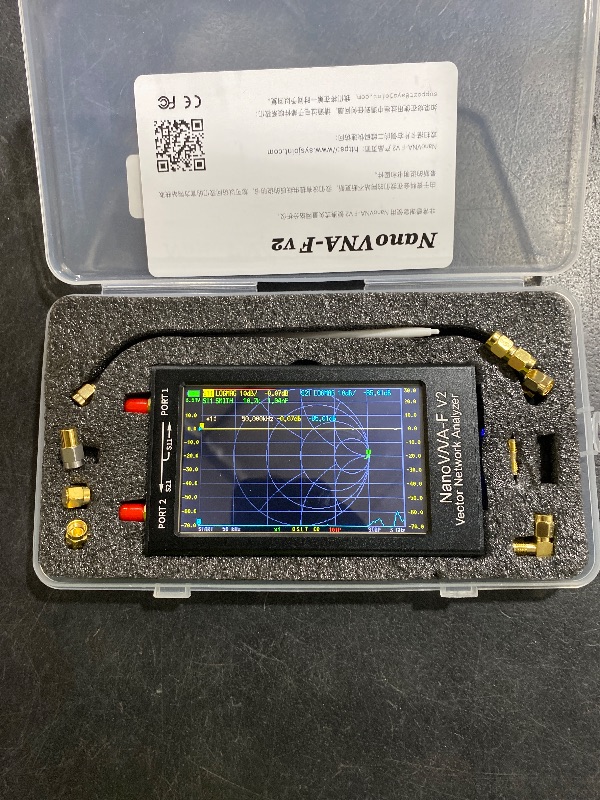

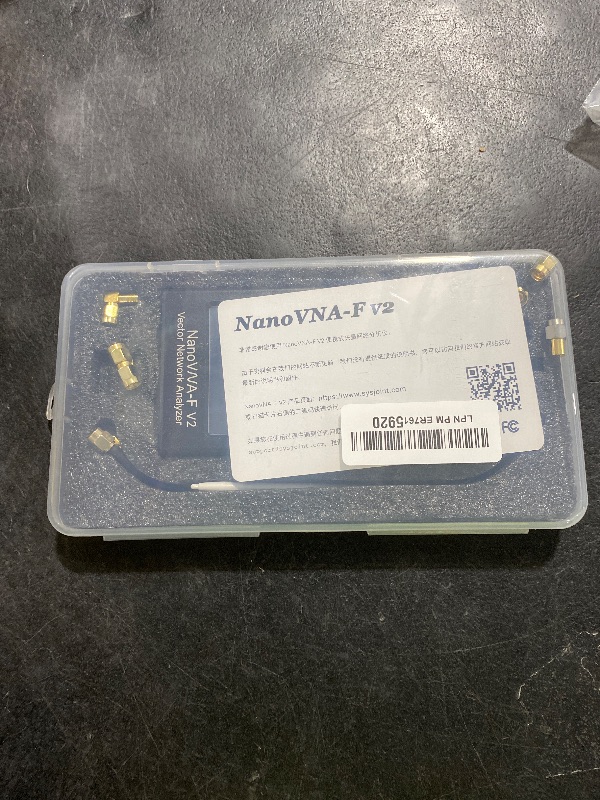

• [Packing List] 1x NanoVNA f v2 host, 1x SMA Open Calibration Kit, 1x SMA Short-circuit Calibration Kit, 1x SMA 50Ω Load Calibration Kit, 1x SMA-KK Double-Head Female Hole Adapter, 1x SMA-JJ Double-Head Male Pin Adapter, 1x SMA-JKW Elbow Outer Screw Inner Hole To Inner Screw Inner Needles Adapter, 2x 20cm SMA-JJ RG405 RF Cable, 1x USB Type-C Data Cable, 1x Stylus
