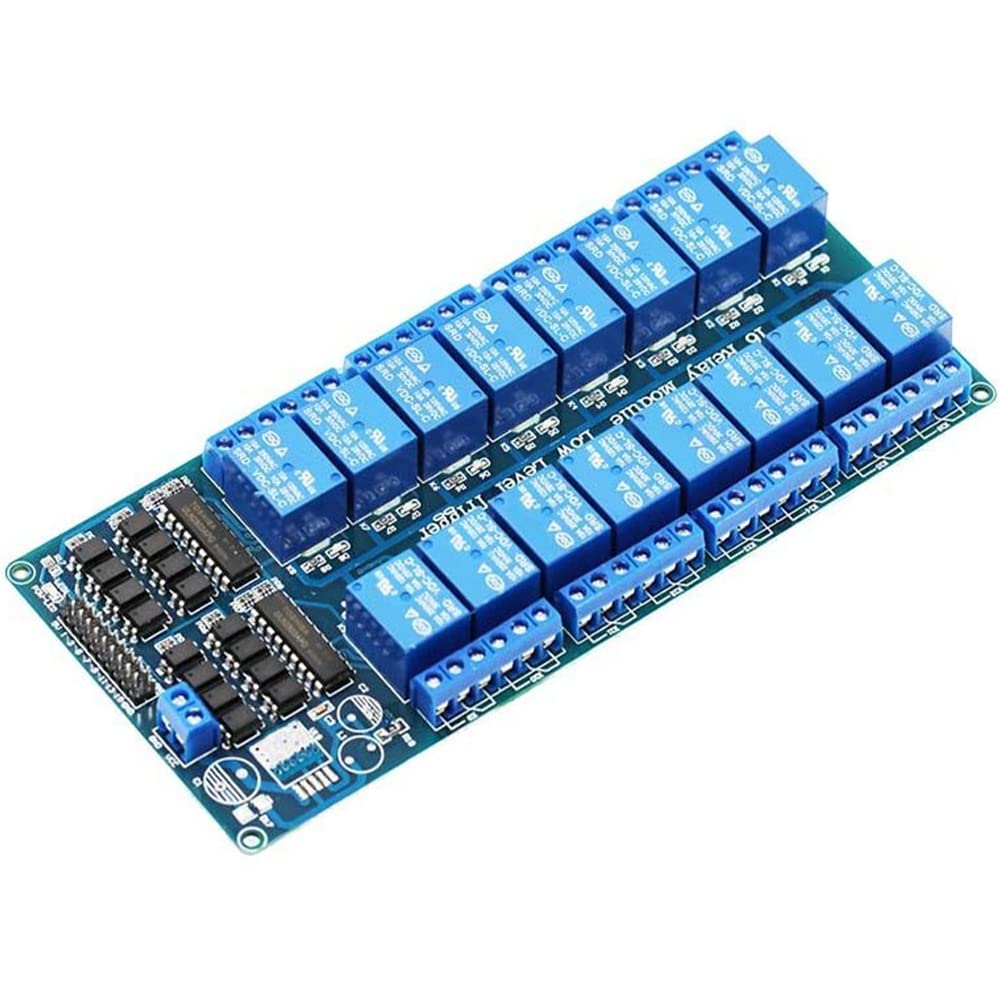

ANMBEST 16 Channel 5V Relay Module with Optocoupler Low Level Trigger Expansion Board for Raspberry Pi Arduino

The relay comes with 16(single) channel 5V activation relay, ready to control 250VAC at 10A. Extra isolation with opto-coupler at the front end of control, and the activation logic for relay is configureable via a mini jumper. Technical Specifications: Channel: 16 channel Working Voltage: DC 5V Normally Opened Compatible Load: 10A 250VAC / 15A 125VAC / 10A 30VDC Quiescent Current: 5mA Maximum Current: 80mA Trigger Current: 2 - 5mA Trigger Voltage(LOW): 0 - 1.5V Trigger Voltage(HIGH): 2.5 - 5V Insulation resistance: 100MΩ (500VDC) Action time (under rated voltage): less than 10ms Release time (under rated voltage): less than 5ms User friendly interface design. All interfaces can be connected directly via terminal wiring leads. Module Size: 179mmX90mmX18.5mm /7.05X3.54X0.73inch(L*W*H) Input Interface: DC+:connect to power positive DC-: connect to power negative IN: relay module trigger pin Relay Output: Normally Opened (NO) : normally open pin of relay. NO pin is not connect to COM pin when relay off.NO pin is connect to COM pin when relay on; Common pin (COM) : Common pin of the relay; Normally closed (NC) : normally close pin of relay.NC pin is connect to COM pin when relay off.NC pin is not connect to COM pin when relay on; Package includes: 1 x 16 Channel 5V Relay Module with Optocoupler Module
