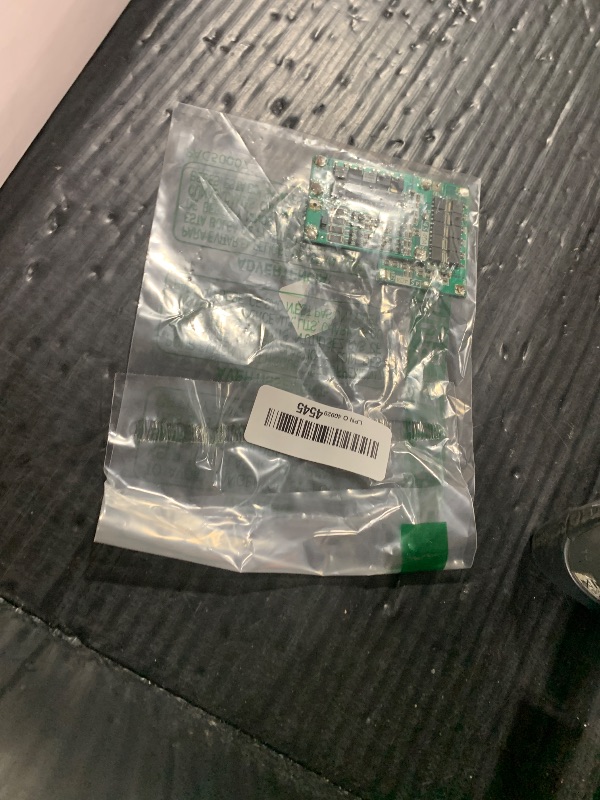

AITIAO 4PCS 4S 40A 16.8V Li-ion Lithium Battery Protection Board PCB BMS 18650 Lithium Charger Protection Circuit with Balance for Drill Motor

Description: Product Name: 4 string 14.8V 16.8V 40A lithium battery protection board Charging voltage: DC 16.8V~17V Continuous discharge current: 40A maximum (if the heat dissipation environment is not good, please reduce the load current) Continuous charging current: up to 20A Balance VersionProduct size: 45*60*4mm Applicable choice: applicable to the nominal voltage of 3.7V, fully charged 4.2V lithium battery(including 18650, 26650, polymer lithium battery), can be drilled below 170W Note: 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill!!). 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not deliberately short circuit. 3: When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube. 4: 4 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery. Package Included: 4pcs 4S 40A 16.8V lithium battery protection board
