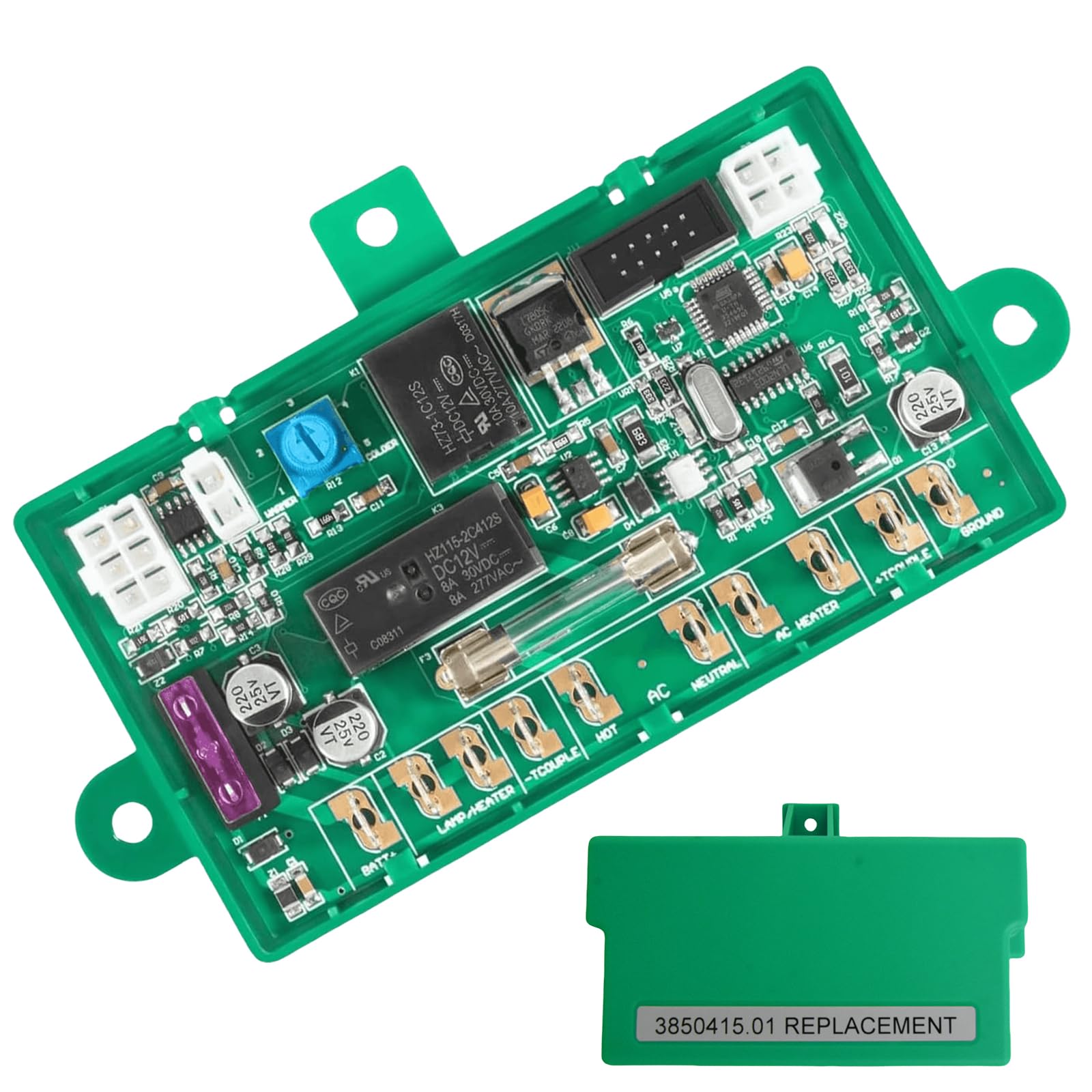

3850415.01 Refrigerator Main Power Control Circuit Board compatible with Dometic 2 Or 3 Way RV Parts

Features

• ✔【Part Number】：3850415.01 Refrigerator Main Power Control Circuit Board fit for Dometic
• ✔【Compatible Refrigerators Models】：NDR 1062 serial # 921146080 - 921146087), NDR 1292 (serial # 921148101 - 921148110), RM 2354 (# 921145025 - 921145031 ), RM 2451 (# 921140112 - 9211401126 ), RM 2454 (# 921140114 - 921140119 ), RM 2551 (# 921142101 - 921142110 ), RM 2554 (# 921142107 - 921142108 ), RM 2620 (# 921575002 - 921575013 ) The circuit board for the refrigerator is circuit board 3850415.01.
• ✔【Refrigerators & Dometic Black Box Part】：RM 2652 (serial # 921144101 - 921144140 ), RM 2662 (# 921144103 - 921144110 ), RM 2663 (# 921144105 - 921144106 ), RM 2820 (# 921596009 - 921596011 ), RM 2852 (# 921146101 - 921146154 ), RM 2862 (# 921146103 - 921146108 ), RM 3862 (# 921146109 - 921146160 ), RM 2351 The circuit board for therefrigerator is circuit board 3850415.01.
• ✔【Built in igniter.】：2 or 3 operations. Fuse protection. Variable temperature regulation for fixed temperature refrigerators. After each failed ignition attempt, the check light will light up. If no flame is detected, repeat the ignition cycle three times at 30 minute intervals. In three-way mode, if the voltage level is too low for more than 10 seconds, the DC component will detach and the DC mode light will flash.
• ✔【100% Satisfaction】: We have absolute confidence in the product: If there are any product issues, please contact us immediately and guarantee a satisfactory response within 12 hours!
