24-pin to 6-pin ATX Power Adapter Cable for motherboards Z220 Z230 SFF Series 4000 6005 8300 600 G1 800 G1 13" (33cm)

Features

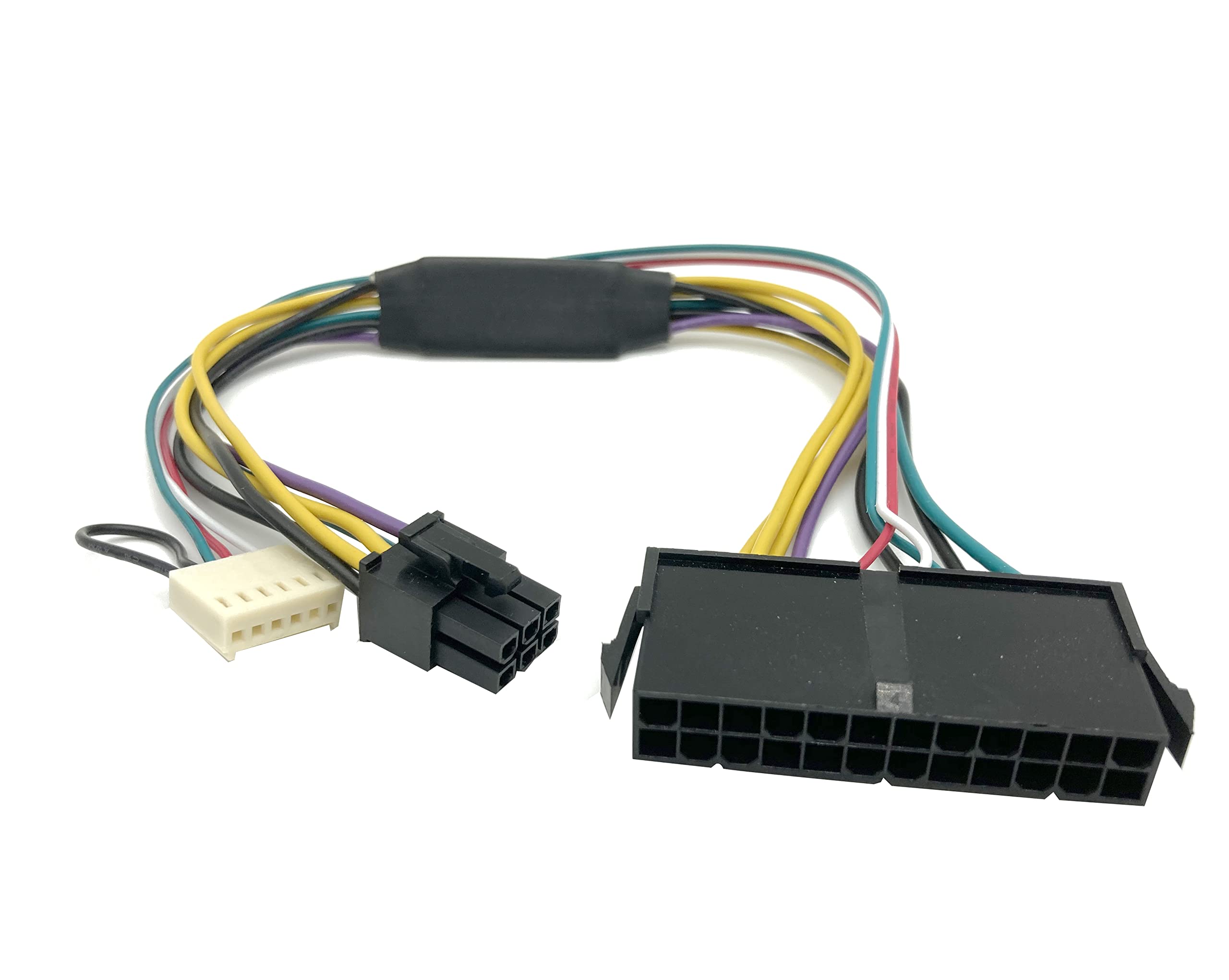

• 24P - 6P 24-pin end: This cable plugs into a standard 24-pin ATX power supply, the standard 6-pin and the smaller 6-pin P2 end into the PC motherboard; (Note: Please do not forget to connect the ATX 4-pin cable from the replacement power supply to the CPU 4-pin port on the motherboard).
• Compatibility:The cable is compatible with motherboard Z200/Z210/Z220/Z230/Z240 SFF server workstations, PC motherboards 600 G1 SFF/600 G2 SFF/690 G1 SFF, motherboards 800 G1/800 G2/600 G1/880 G1 SFF series (4000 4300 6000 6005 6060 6080 6200 6280 6300 6305 6380 8000 8080 8100 8180 8200 8280 8380);
• Parameters and specifications: 1007-18AWG (standard tinned copper wire), length: 13" (33 cm), quantity: 1 piece;
• Note: This cable is only designed to be compatible with the above model of motherboard, if you connect it to another incompatible type it will burn or damage the motherboard and we will not be held responsible for incorrect use or installation. Please check the compatible type carefully and contact us if you are unsure;
