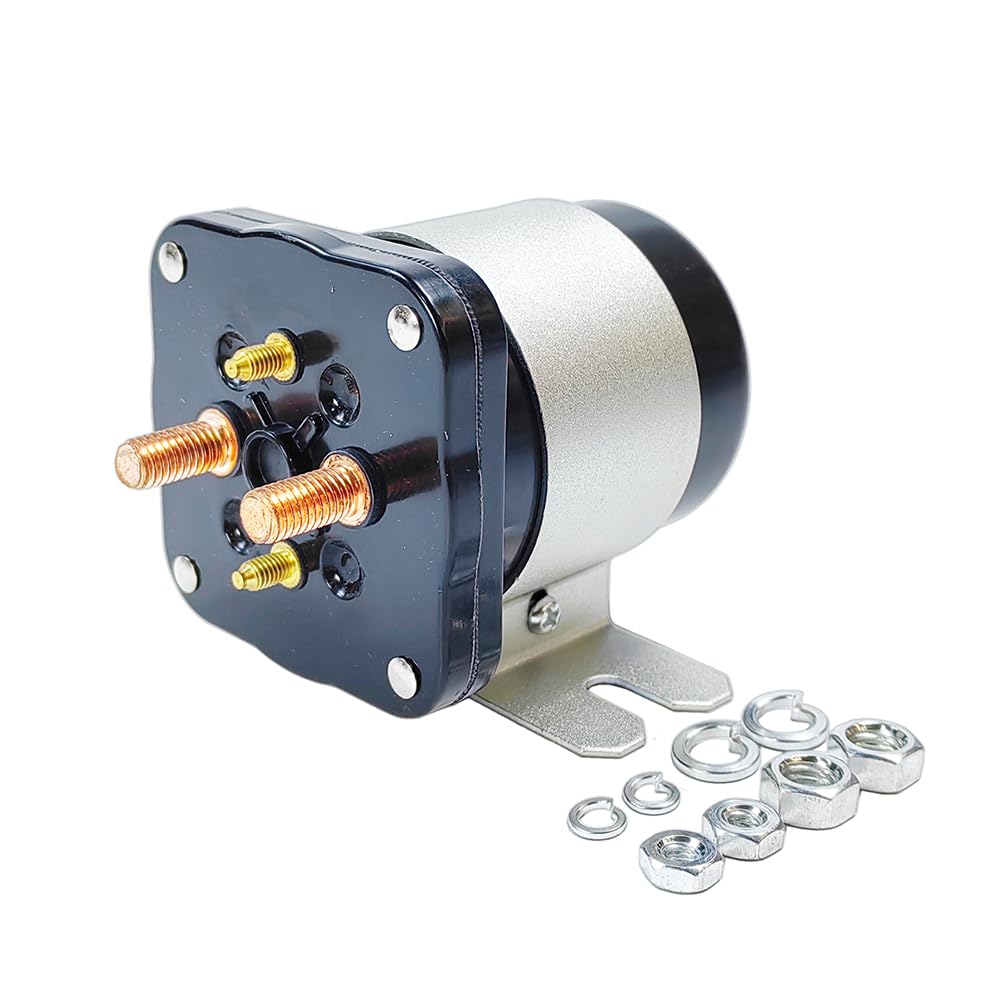

12V 200Amp Mobile Audio Battery Isolator High Current Continuous Solenoid Relay | Fits for White Rodgers, Trombetta, Prestolite, Johnson Electric | OE#: 586-902 586-105111 114-1211-020 SBJ4201 SO51221

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• Specification: Voltage: 12VDC | Rated Load Current: 200 Amps | Surge Power Current: 300 Amps | Insulation Resistance: ≥50mΩ | Coil Power: ≤38W | Mounting Type: Flat 180 | Battery Terminal: 5/16”-24 UNF Thread | Switch Terminal: #10-32 UNF Thread | Contact Form: Single-Pole Normally Open (SPNO) | Terminal Number: Four |
• Compatible with White Rodgers: | 586-902 | 586-105111 | 586-105111-3 | 586902 | 586105111 | 5861051113 | 586-105111B1 | Trombetta: | 114-1211-020 | 114-1211-020-02 | 114-1211-010 | Prestolite: | 15-550 | SBJ4201 | 15550 | Miscellaneous: | 586-105111-5 | 5861051115 | Johnson Electric: | 5122140 | SO51221 |
• It can be used in vans, RVs, or boats to isolate the house batteries from the alternator and starter battery when the engine isn’t running. It can also be used to isolate two lead-acid batteries from one another to prevent one from drawing down the other.

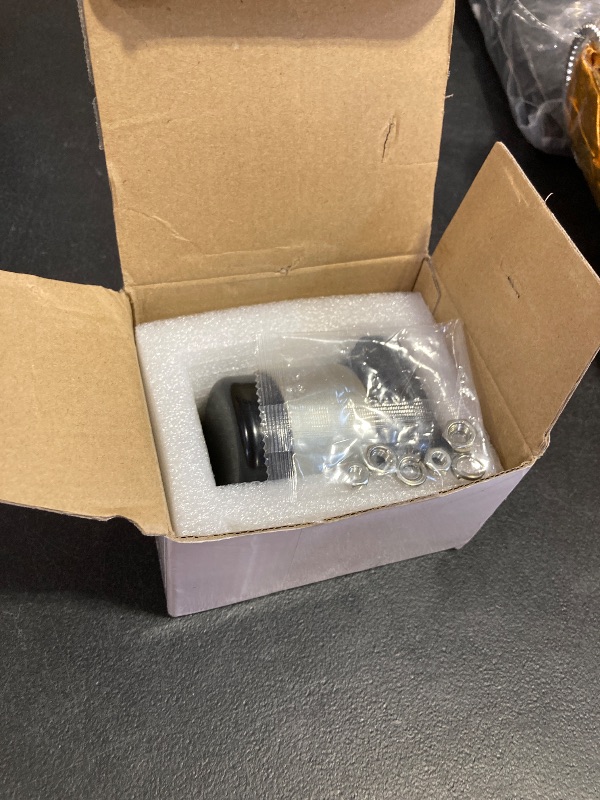

• Product Includes: 1X Solenoid Relay with Bolts & Washers
• Warranty: For any reason, if you are not satisfied with your purchase, contact us directly. We offer 1-year warranty, 100% satisfaction guarantee.
