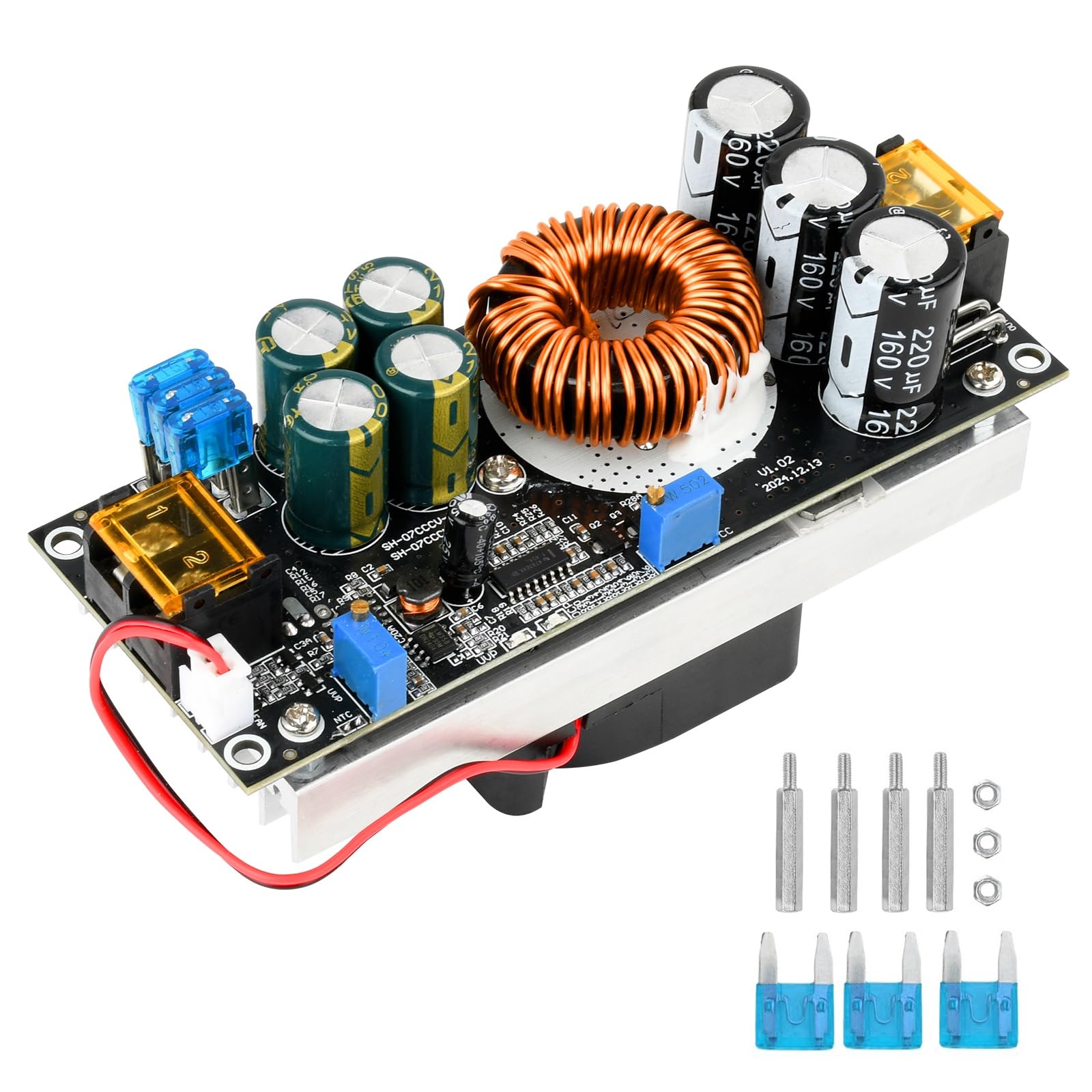

1200W Voltage Converter,Aideepen 20A Boost Converter Voltage Regulator DC-DC Boost Converter Car Step-up Power Supply Module Adjustable Voltage Converter 14V-85V to 14-120V

Features

• Upgrade1: Adjustment of higher input and output parameters, circuit optimization, more stable output voltage, and tin window processing for high current circuits. An additional copper resistor has been added for output current detection, making excessive current more stable.
• Upgrade2: Added a switch MOS transistor that can quickly turn off the discharge circuit, preventing the risk of MOS transistor breakdown and short circuit; Add 3 15MAP fuses, which can be replaced by oneself if burned out.
• Input voltage range: 14-85V；Output voltage range: 14-120V（±5V）
• Input Current: 20A（Max); Output Current: 1.5-18A（±0.5A）
• Features：Input overcurrent protection; Short circuit protection; Input reverse connection protection; Low battery protection.
• Widely Application：can be used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power, DIY adjustable CV CC power, solar power charging, and various batteries charging.
