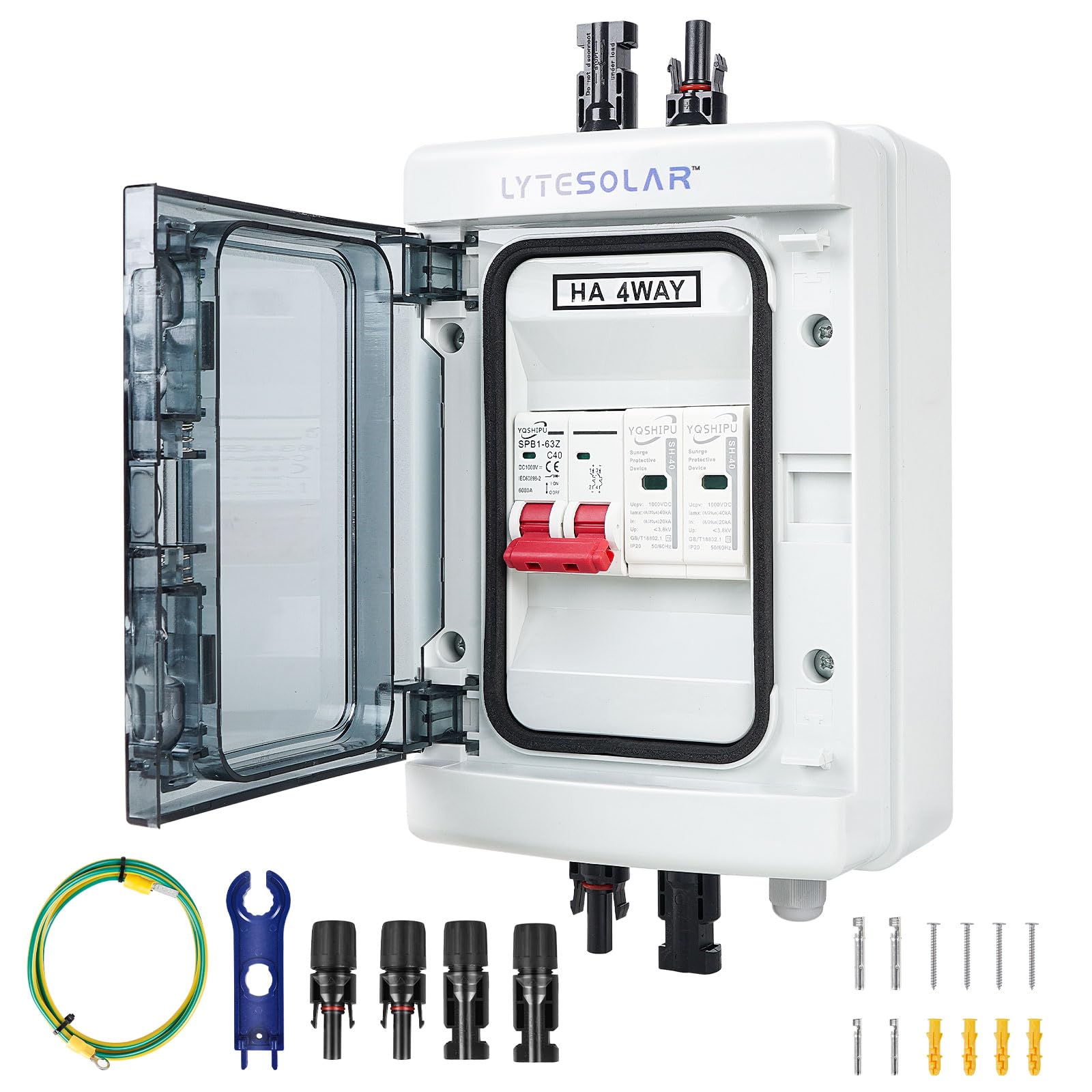

1 String 1000V PV Combiner Box 1 in 1 Out, Single String 40A DC Circuit Breaker with Solar Disconnect Function, Surge Protection, IP65 Weather-Resistant Enclosure

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 【Durable Outdoor Enclosure】This 1000V PV combiner box (1 in 1 out) features a rugged PC+ABS enclosure with flame-retardant properties, designed for long-term outdoor use. The housing resists UV exposure, high and low temperatures, and aging, supporting reliable performance in harsh solar installation environments.
• 【Enhanced Weather Protection】This PV combiner box features a sealed rubber gasket and a weather-resistant enclosure rated IP65, with IP68-rated connectors for added protection. The design helps prevent water and dust ingress, supporting stable operation in rain, snow, and outdoor solar environments.
• 【Simplified Installation】This PV combiner box comes with pre-installed solar panel connectors for straightforward installation. The integrated DC circuit breaker and surge protection components are factory assembled, reducing on-site wiring and helping installers save time during solar system setup.
• 【Visual Status Monitoring】The transparent cover allows users to visually inspect the DC circuit breaker and surge protection status without opening the enclosure. A visible indicator on the surge protection module helps identify when replacement may be required after a surge event.
• 【Electrical Ratings & Included Accessories】Equipped with a 40A DC circuit breaker rated for 1000V (2P) and a DC surge protection module rated 20–40kA at 1000V (2P). The unit features flame-retardant component enclosures and includes solar panel connectors, mounting hardware, an installation tool, and a grounding wire for standard setup.
