1.54 Inch E-Ink Display Module 200x200 SPI Interface e-Paper Screen Compatible with Raspberry Pi Arduino, Ultra Low Power Electronic Paper for Shelf Labels DIY Projects

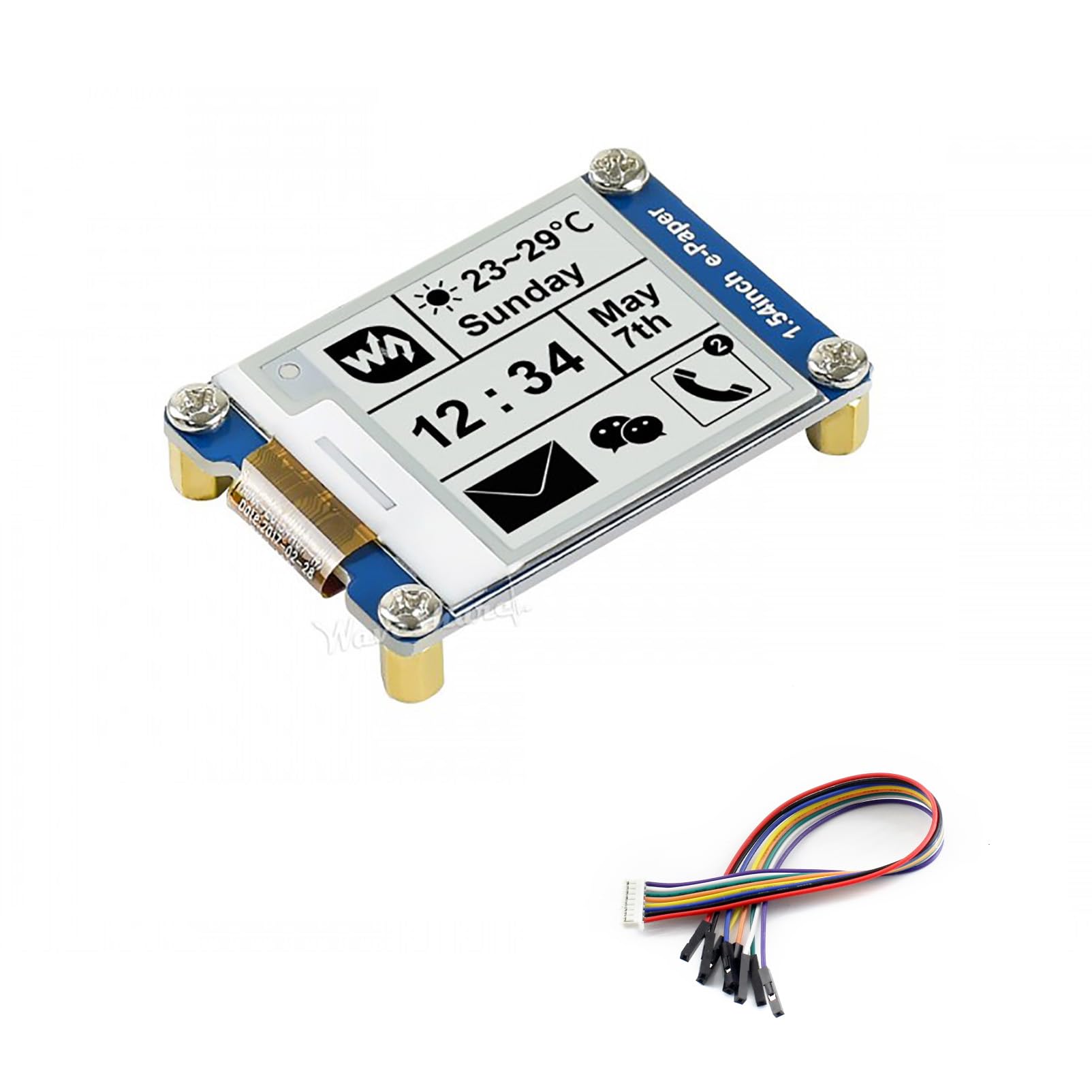

Overview This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features: No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications: Operating voltage: 3.3 V/5 V. Interface: 3-wire SPI, 4-wire SPI Outline dimensions: 48 mm x 33 mm. Display size: 27.6 mm x 27.6 mm. Dot pitch: 0.138 × 0.138. Resolution: 200 × 200. Display colour: black, white. Grey level: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW (typ.) Standby power: <0.017mW. Viewing angle: >170°. Package includes: 1.54 inch e-paper module x 1. XH2.54 20 cm 8 pin x1. 100% original,offer technical support!
